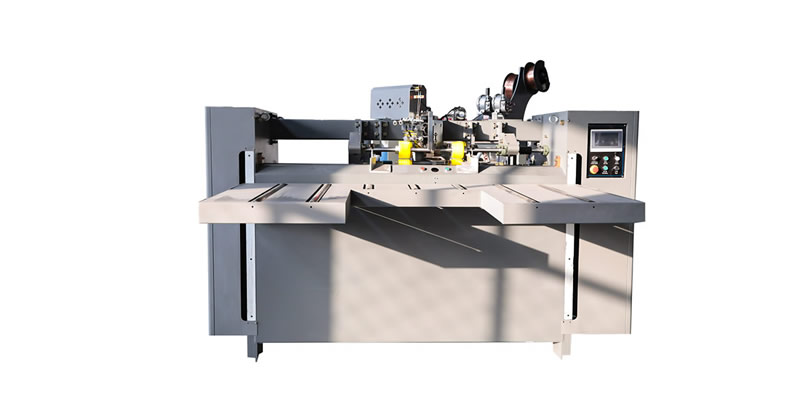

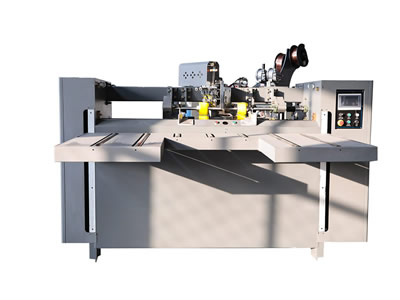

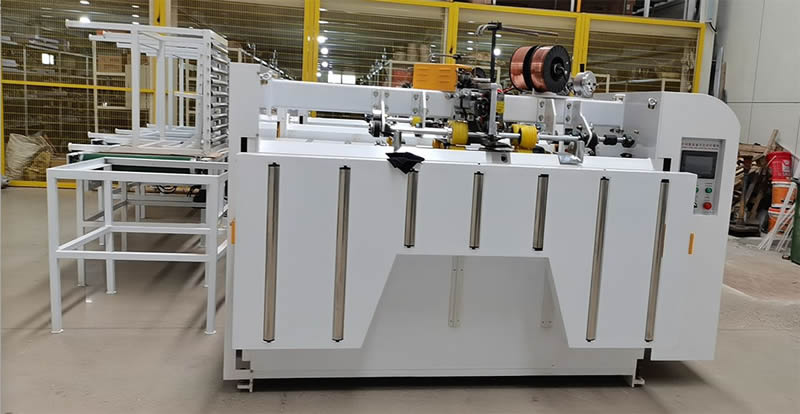

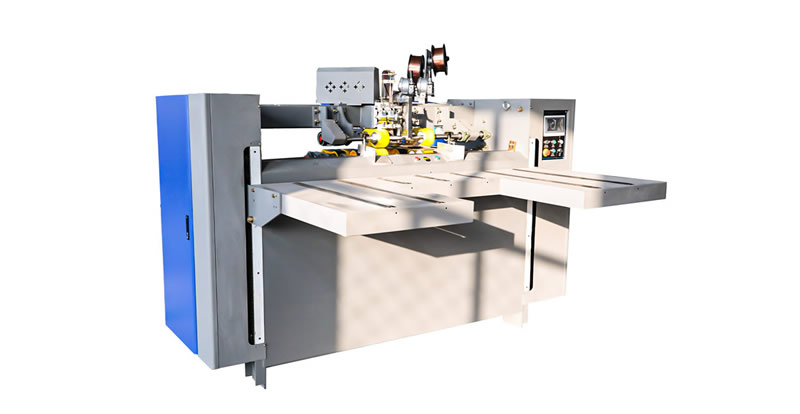

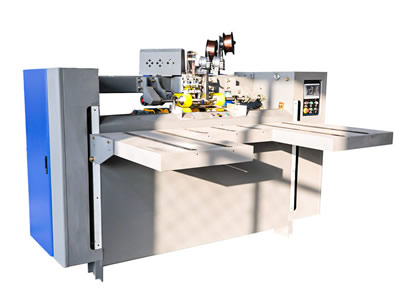

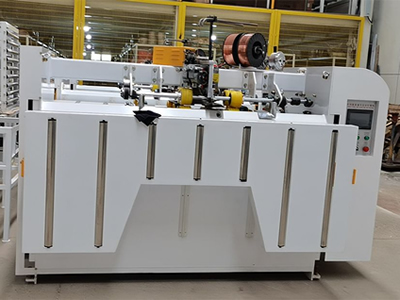

Semi-automatic Stitching Machine, 600 Stitches/min, SDJ-D
Features
- Four servo drive from MITSUBISHI, with high precision and less transmission parts, failure rate is significantly reduced;
- Omron PLC control system;
- Adjustment of carton size and stitch pitch can be accomplished within one minute, easy to operate and saving time;
- Paper feeding section is equipped with automatic counting unit and photoelectric sensor, feeding table will automatically lift during feeding process;
- Automatic counting function is also available at tail section, finished cartons are transported in batches (can be set in a range of 2-99pcs) to the end part of the conveyor for strapping and packaging;
- Lifting height of working table: 900mm;
- Machine speed: 600 stitches/min;
- Suitable for stitching one-piece box, two-piece box and irregular shaped box;
- Single stitch (/), double stitch (//) or strengthen stitch (////) can be done in one pass, satisfying specific needs of users;
- Stitch pitch is adjustable in a range of 30-120mm;
- Automatic wire feeding system (20kg flat wire);
- Convenient human-machine interactive operation;
- Back baffle is electrically adjusted, quick and precise positioning change;
- Only two people are needed to stitch semi-products and put finished products at the right place, easy and convenient operation.
Specifications
| Model | | | |
| Max. sheet size (A+B)*2(mm) | 3200(125.98") | 4000(157.48") | 5000(196.85") |
| Min. sheet size (A+B)*2(mm) | 980(38.58") | 980(38.58") | 980(38.58") |
| Max. carton length A(mm) | 1480(58.27") | 1480(58.27") | 1480(58.27") |
| Min. carton length A(mm) | 370(14.57") | 370(14.57") | 370(14.57") |
| Max. carton width B(mm) | 800(31.50") | 1000(39.37") | 1250(49.21") |
| Min. carton width B(mm) | 120(4.72") | 120(4.72") | 120(4.72") |
| Max. sheet height (C+D+C)(mm) | 2900(114.17") | 2900(114.17") | 2900(114.17") |
| Min. sheet height (C+D+C)(mm) | 400(15.75") | 400(15.75") | 400(15.75") |
| Max. flap size C(mm) | 450(standard)(17.72") 600(optional)(23.62") | 450(standard)(17.72") 600(optional)(23.62") | 450(standard)(17.72") 600(optional)(23.62") |
| Min. flap size C(mm) | 80(standard)(3.15") 20(0.79")(optional) | 80(standard)(3.15") 20(0.79")(optional) | 80(standard)(3.15") 20(0.79")(optional) |
| Max. carton height D(mm) | 2000(78.74") | 2000(78.74") | 2000(78.74") |
| Min. carton height D( mm) | 200(7.87") | 200(7.87") | 200(7.87") |
| Max. glue flap width (mm) | 40(1.57") | 40(1.57") | 40(1.57") |
| Stitch pitch (mm) | 30-120(1.18-4.72") | 30-120(1.18-4.72") | 30-120(1.18-4.72") |
| Number of stitches | 2-99 | 2-99 | 2-99 |
| Machine speed (stitches/min) | 600 | 600 | 600 |
| Machine weight (T) | 3.0 | 3.2 | 3.5 |
