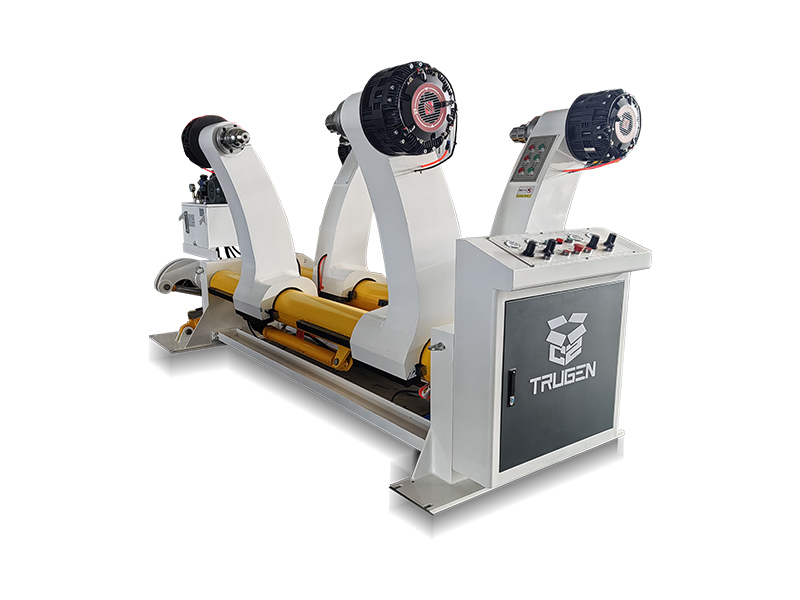

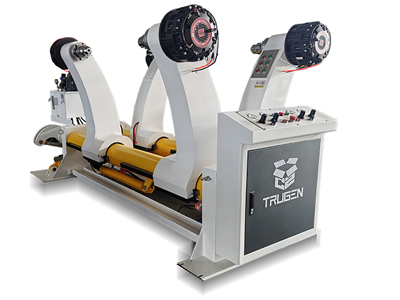

Hydraulic Shaftless Mill Roll Stand
Corrugated Board Manufacturing
-
- Movement of roll stand arm
- fully hydraulic motion
-
- Paper roll diameter
- max. φ1500mm, min. φ400mm
-
- Spindle diameter
- φ240mm
-
- Loading capacity
- 3.5T/5T
-
- Working width
- 1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm
-
- Working pressure
- 12-16 MPa
-
- Hydraulic cylinder range(lift and down)
- φ100mm×460mm
-
- Hydraulic cylinder range(clamp and release)
- φ63mm×720mm
-
- Brake
- dual-point, multi-point
Features
- The design of symmetric structure allows for loading two paper rolls simultaneously, so that roll changing can be accomplished without stopping the machine;
- All movements including lifting and lowering, clamping and releasing are hydraulically controlled;

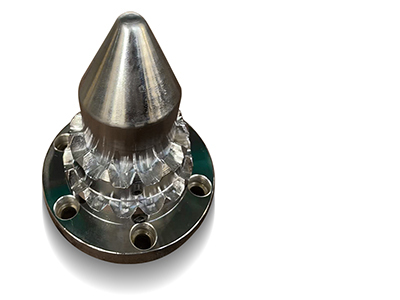

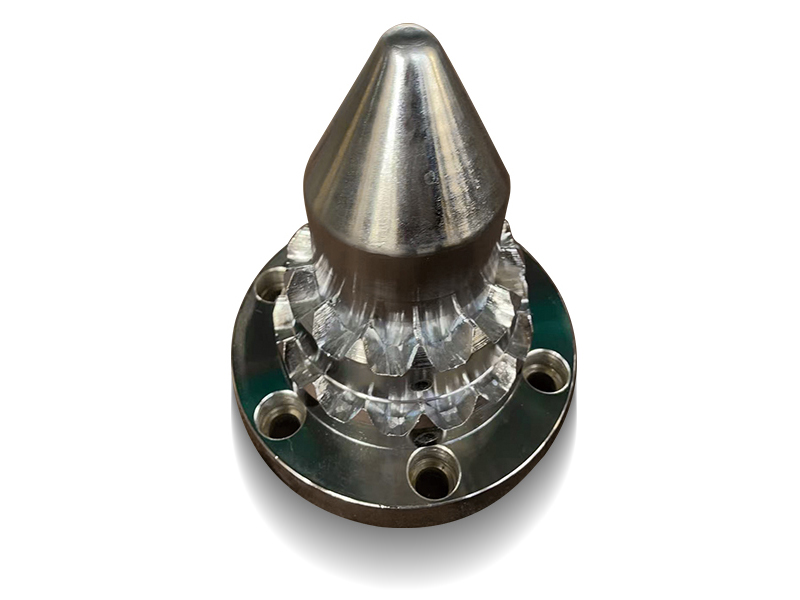

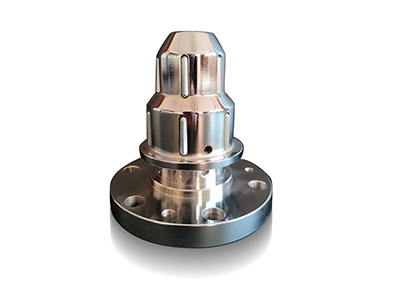

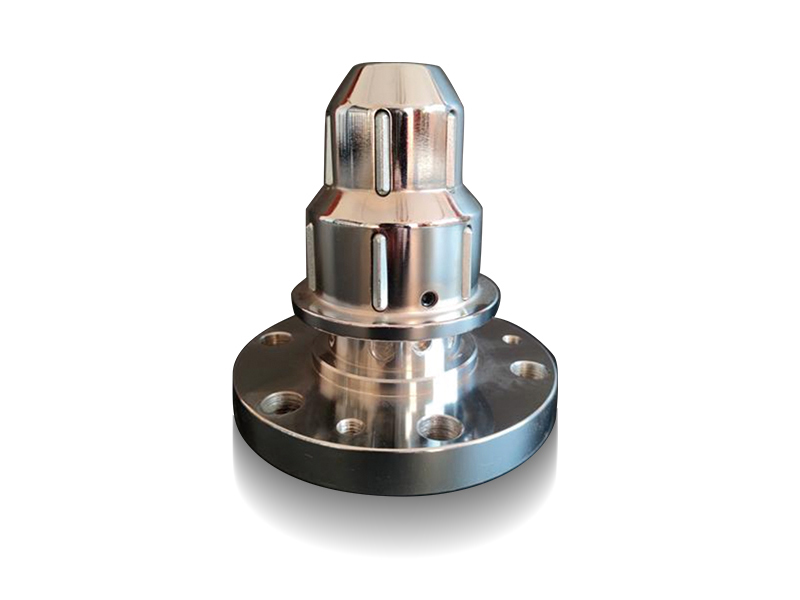

- Roll stand chucks are expandable chucks for optimal efficiency;

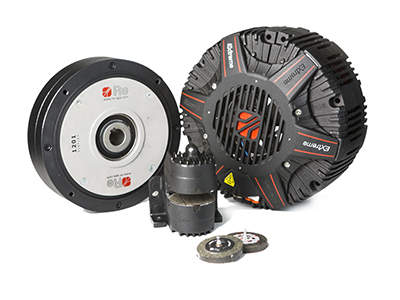

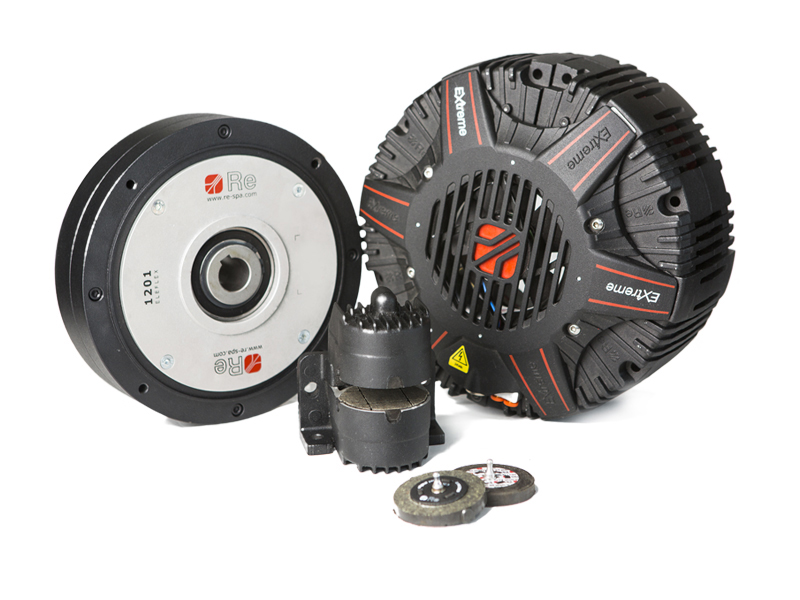

- Pneumatic brake control of web tension;
- Brake is adjustable and multipoint inspection system is adopted;
