Single Facer, SF-DW10/DW15

Corrugated Board Manufacturing

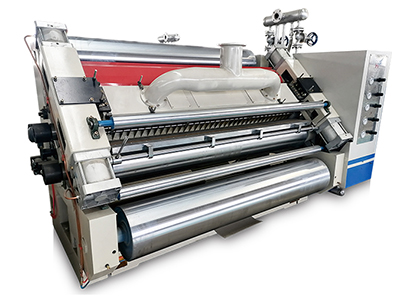

Single Facer,SF-DW10/DW15
SF-DW10

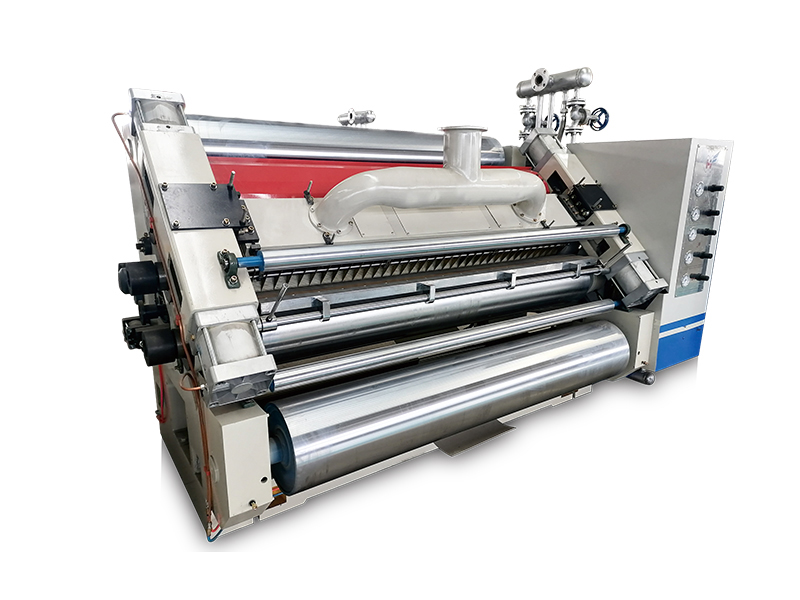

Single Facer,SF-DW10/DW15
SF-DW15
Inquiry
Model SF-DW10 SF-DW15
Max. Design speed 100m/min 150m/min
Working speed 60-80m/min 100-120/min
Flute roller Dia. 280mm 320mm
Work width 1400mm, 1600mm, 1800mm 1600mm, 1800mm, 2000mm, 2200mm
Heating source Steam, electricity, liquid gas Steam

Features

  • Paper feeding is carried out by using vacuum absorption method, a high-pressure blower is equipped to ensure the stable corrugation process at high speed;

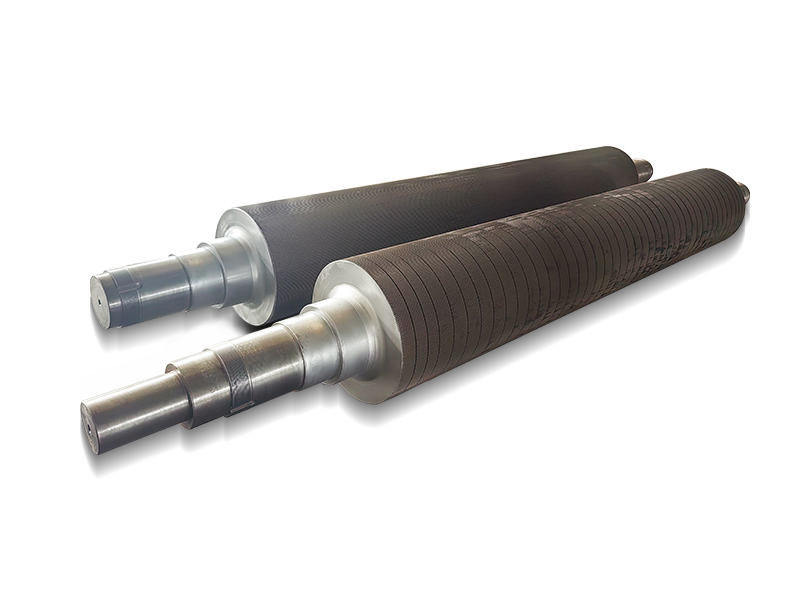

  • The width of groove on lower corrugating roll is less than 2mm, efficiently preventing the marks of stripes on corrugated cardboard;

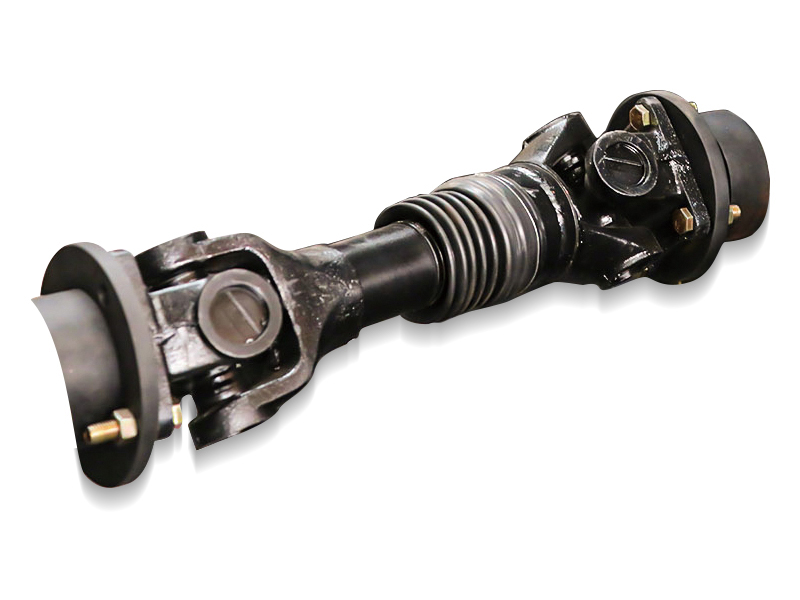

  • Universal joint transmission system is adopted to reduce vibration, enabling the operation more stable and reliable;
  • Reduction gearbox is designed with oil-immersed lubrication to lower the machine vibration;
  • Automatic glue feeding, pneumatic control of glue application and return can provide cushion effect;
  • Engraved glue applicator roll is chrome plated;
  • The glue width is electrically adjusted with convenience and fastness;
  • The surface of glue applicator roll is engraved and chromium-plated;
  • When the single facer is heated by steam, paper medium can be equipped with a water sprayer which is able to humidify paper and avoid paperboard bursting, ensuring the forming of paper medium and improving the smoothness and production speed of corrugated board.
