5Ply Corrugated Board Production Line (Double Wall Cardboard)
- Working speed: 100m/min, 120m/min, 150m/min, 180m/min, 200m/min, 250m/min
- Corrugated board width:1600mm, 1800mm, 2000mm, 2200mm, 2500mm

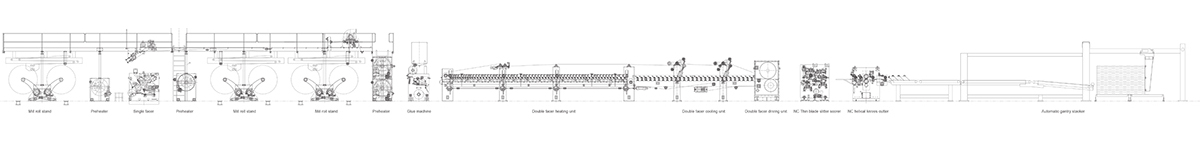

- Configuration: Mill Roll Stand (5 units) + Single Facer (2 units) + Preheater (4 units) + Three Layer Preheater (1 unit) + Corrugator Bridge + Glue Machine + Double Facer + Slitter + Cutoff (double layer is optional) + Stacker (double layer is optional)
Specifications
| Model | | | | |
| Machine dimensions: L*W*H | 61.5m*8.5m*5m | 72.5m*8.5m*5m | 82m*8.5m*5m | 84m*8.5m*5m |
| Installation dimensions: L*W*H | 63m*9.5m*5.5m | 74m*9.5m*5.5m | 83.5m*9.5m*5.5m | 86m*10m*5.5m |
| Installed power | 184kW | 224kW | 303kW | 338kW |
| Starch consumption | about 10-20g/ m2 | about 10-20g/m2 | about 10-20g/m2 | about 10-20g/ m2 |
| Width range | 500mm-1800mm | 500mm-1800mm | 500mm-1800mm | 500mm-1800mm |
| Mechanical Speed | 100m/min | 150m/min | 200m/min | 220m/min |
| Production speed | 60-80m/min | 80-120m/min | 100-180m/min | 120-200m/min |
| Single-shift production | about 40000 m2/8h | about 60000 m'/8h | about 90000 m2/8h | about 105000 m2/8h |
| Cross-cutting range | 500mm-9999mm | 500mm-9999mm | 500mm-9999mm | 500mm-9999mm |
| Cross-cutting accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Slitting range | 140mm-1800mm | 150mm-1800mm | 150mm-1800mm | 150mm-1800mm |
| Slitting accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Staffing | 6-8people | 6-8people | 6-8people | 6-8people |
