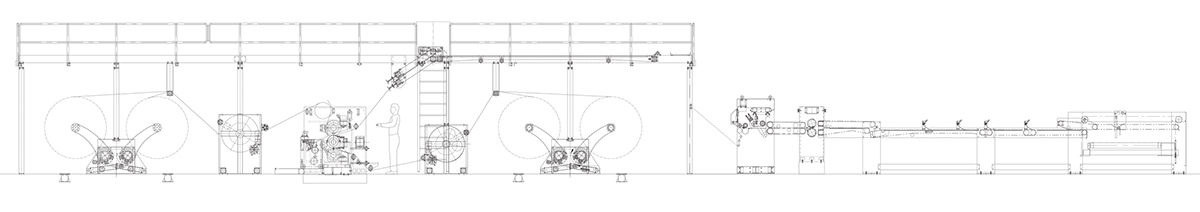

3Ply Corrugated Board Production Line (Single Wall Cardboard)
- Working speed: 100m/min, 120m/min, 150m/min, 180m/min, 200m/min, 250m/min
- Corrugated board width: 1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm
- Configuration: Single Facer (1 unit) + Preheater (2 units) + Double Layer Preheater (1 unit) + Corrugator Bridge + Glue Machine + Double Facer + Slitter + Cutoff (double layer is optional) + Stacker (double layer is optional)
Specifications
| Model | | | | |
| Machine dimensions: L*W*H | 46.5m*8.5m*4m | 57m*8.5m*4m | 65.5m*8.5m*4m | 67.5m*8.5m*4m |
| Installation dimensions: L*w*H | 48.5m*9.5m*5.5m | 58.5m*9.5m*5.5m | 67.5m*9.5m*5.5m | 69m*10m*5.5m |
| Installed power | 144kw | 176kw | 232kw | 256kw |
| Starch consumption | about 6-10g/ m2 | about 6-10g/ m2 | about 6-10g/m1 | about 6-10g/ m2 |
| Width Range | 500mm-1800mm | 500mm-1800mm | 500mm-1800mm | 500mm-1800mm |
| Mechanical speed | 100m/min | 150m/min | 200m/min | 220m/min |
| Production speed | 60-80m/min | 80-120m/min | 100-180m/min | 120-200m/min |
| Single-shift production | about 50000 m2/8h | about 70000 m2/8h | about 100000 m2/8h | about 120000 ma/8h |
| Cross-cutting range | 500mm-9999mm | 500mm-9999mm | 500mm-9999mm | 500mm-9999mm |
| Cross-cutting accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Slitting range | 140mm-1800mm | 150mm-1800mm | 150mm-1800mm | 150mm-1800mm |
| Slitting accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Staffing | 6-8people | 6-8people | 6-8people | 6-8people |
