  • Sheet to Sheet Laminator, BZJ-L Series

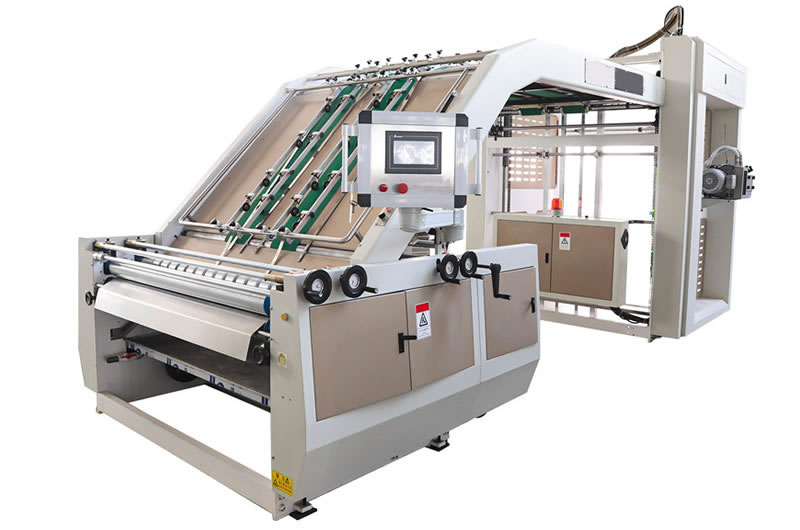

Sheet to Sheet Laminator, BZJ-L Series

Sheet to Sheet Laminator, BZJ-L Series
Sheet to Sheet Laminator, BZJ-L Series Sheet to Sheet Laminator, BZJ-L Series Sheet to Sheet Laminator, BZJ-L Series Sheet to Sheet Laminator, BZJ-L Series
Inquiry
  • Adopting exceptional pressing spring front lay design which efficiently reduces failure rate, and intelligent control system ensures high laminating precision;

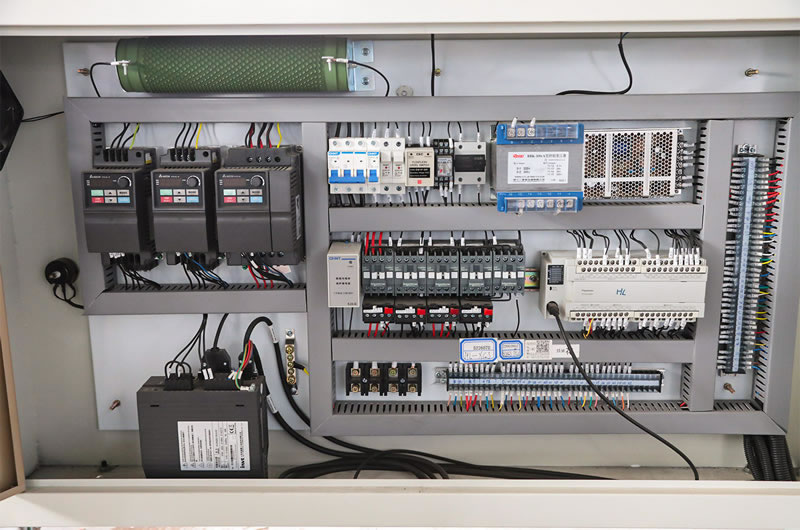

  • Variable speed control, centralized PLC control, offering ease of operation;
  • Steel rolls are subjected to balancing and testing processes, and tightly assembled to enhance the stability of the machine;
Inquiry

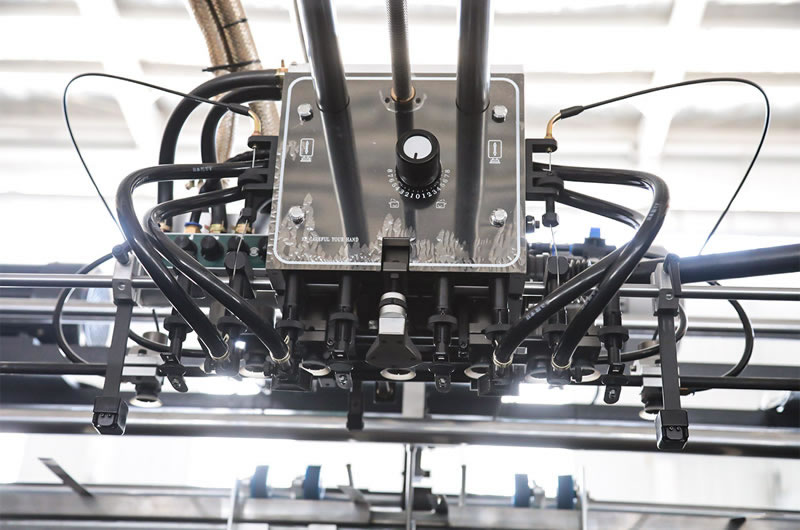

  • Equipped with suction-belt feeder for substrate sheets feeding, efficiently improving running speed and precision;
  • Utilizing hydraulic control with automatic glue application, greatly lowering labor intensity;
  • Self-developed feeding unit coupled with pre-loading device minimizes downtime while improving working efficiency;
  • Suitable for laminating face paper of 150-450gsm with A, B, C, D, E, F flute corrugated sheet, 3-ply and 5-ply cardboard up to 8mm thickness;
  • Paper feeding is controlled by two servomechanisms, guaranteeing the timeliness and accuracy of paper’s conveying to front lay and machines’ precision in adjusting process;
  • All materials under ISO9001 standard test, bearings and other key components are imported with premium quality and durability.

Specifications

Model BZJ-1300L BZJ-1450L BZJ-1600L
Max. sheet size (L×W) 1300×1300mm
(51.18*51.18")
1450×1300mm
(57.09*51.18")
1600×1300mm
(62.99*51.18")
Min. sheet size (L×W) 400×400mm
(15.75*15.75")
400×400mm
(15.75*15.75")
400×400mm
(15.75*15.75")
Max. machine speed 6000 sheets/h 6000 sheets/h 6000 sheets/h
Total power 13kW 13kW 13kW
Dimension (L×W×H) 12000×2250×2655mm
(472.44*88.58*104.53")
12000×2400×2655mm
(472.44*94.49*104.53")
12000×2550×2655mm
(472.44*100.39*104.53")
