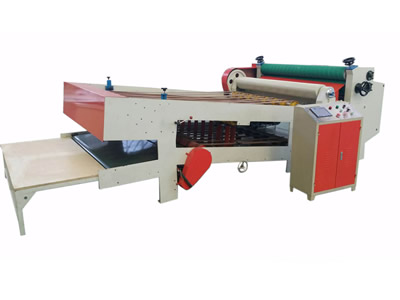

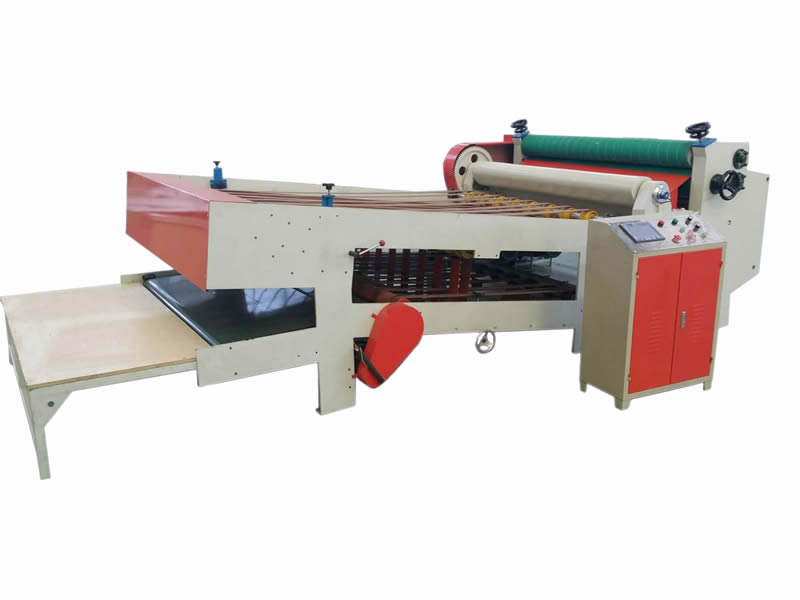

Single Corrugated Slitting, Cutting & Stacking Machine, CSM-8 NC
Corrugated Board Manufacturing
Specifications
-
- Cutting range
- Max.9999mm,Min300mm
-
- Cutting precision
- ±1.5mm
-
- Relative humidity
- 20%-90%
-
- Relative temperature
- 5℃-50℃
-
- Transmission
- P3
| Model | | | |
| Max. cutting width | 1300mm(51.18") | 1600mm(62.99") | 1900mm(74.80") |
| Cutting length | 10mm-2400mm(0.39-94.49") | 10mm-2400mm (0.39-94.49") | 10mm-2400mm (0.39-94.49") |
| Single-faced corrugated board thickness | 1mm-2mm(0.04-0.08") | 1mm-2mm (0.04-0.08") | 1mm-2mm (0.04-0.08") |
| Power | 6kW | 6kW | 6kW |
| Working speed | 80M(3149.61")/Min | 80M(3149.61")/Min | 80M(3149.61")/Min |
| Quantity of board to be collected per time | 4PCS | 4PCS | 4PCS |
Features
- Single cutter can slit or cut single corrugated board at a desired length, ensuring quick order change, high precision cutting and fast working speed, less wasted cardboard during the order change, suitable for applying to high-end color printing corrugated cardboard;
- PLC touch screen is equipped to enable operators see related production statistics and comprehensively understand production progress.
- Variable-frequency motor regulates speed, AC servo driven, reducing the failure rate caused by transmission abrasion in the mechanical speed reduction process, thus ensuring the accuracy of cutting length(average precision±1.5mm) and superior mechanical performance. (thin cutter slitting is available)
