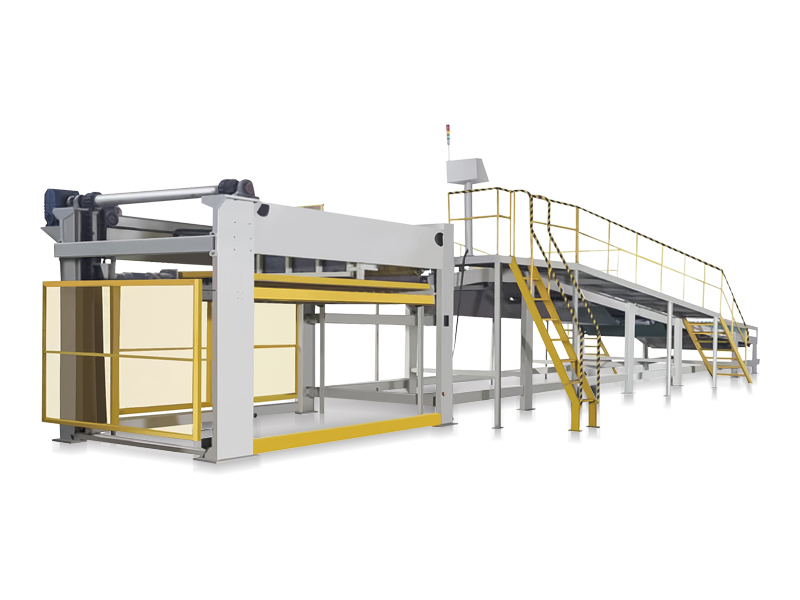

Down Stacker, HM-25A

Corrugated Board Manufacturing

• Design speed
  250m (9842.52")/min
• Working width
  1800mm (70.87"), 2000mm (78.74"), 2200mm(86.61"), 2500mm(98.43")
• Stacking height
  1800mm (70.87")
• Stacking length
  3500mm (137.80")
• Max. stacking sheet length
  3000mm (118.11")

Inquiry

• Automatic sheet counting, pile and order change, not damaging cardboard

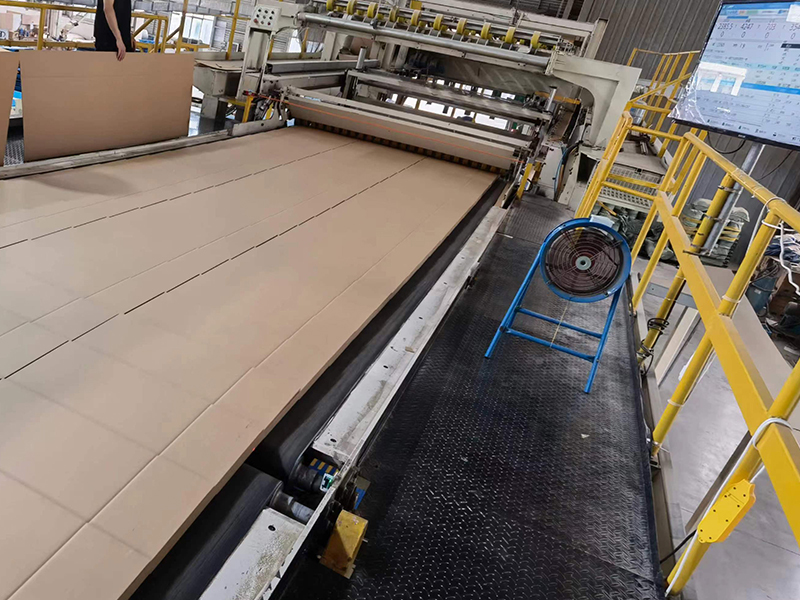

• Belt delivery with five different speed phases, variable frequency speed adjusting, orderly and stable delivery of cardboard;
• Once the pile height has reached the preset value, the lifting table descends and the platform automatically moves laterally to stably send out piles of cardboard;
• Electric adjustment of out-feeding cardboard size, with pneumatic brake;

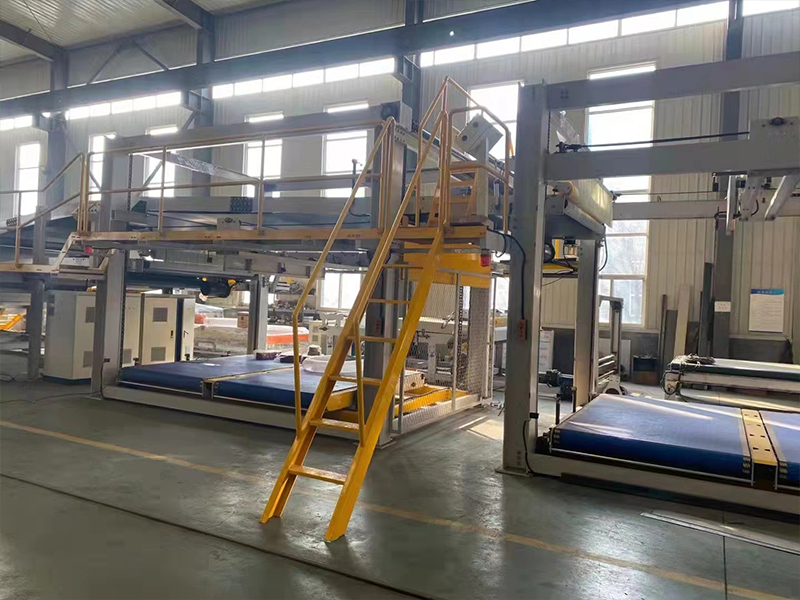

• Two rows of delivery tables are placed at side of the machine for easy packaging;
• Variable-frequency drive controls the stacking and delivery of paperboard, delivery speed keeping synchronous with paperboard speed;
• Flat-belt down stacker, AC servo system controls lift and down, orderly and stable stacking;
• AC servo system controls back baffle, thus ensuring automatic quick order change and precise positioning;
• Easy and reliable operation with the touch screen;
• Fully automated control system, high efficient and effort saving.
