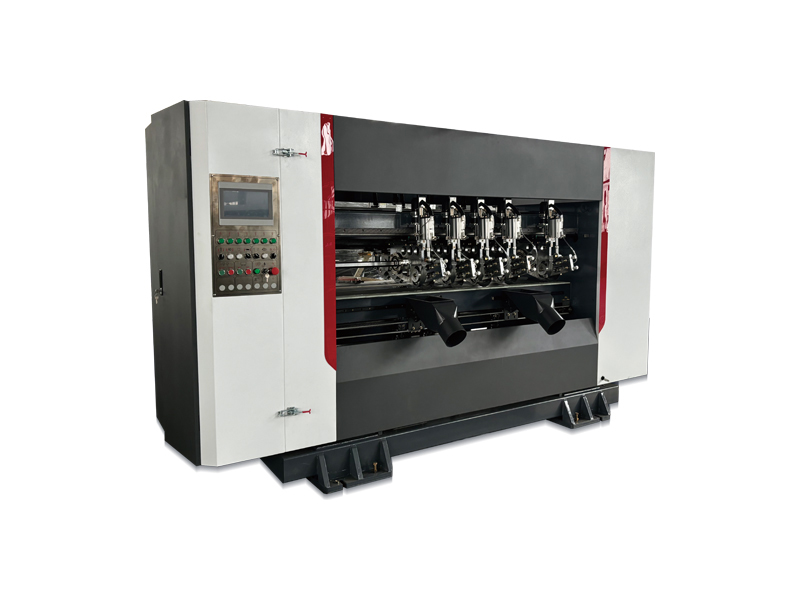

Slitter Scorer Machine, Electrical Control, 80m /min, SMBD-DDJY
Corrugated Board Manufacturing
Features

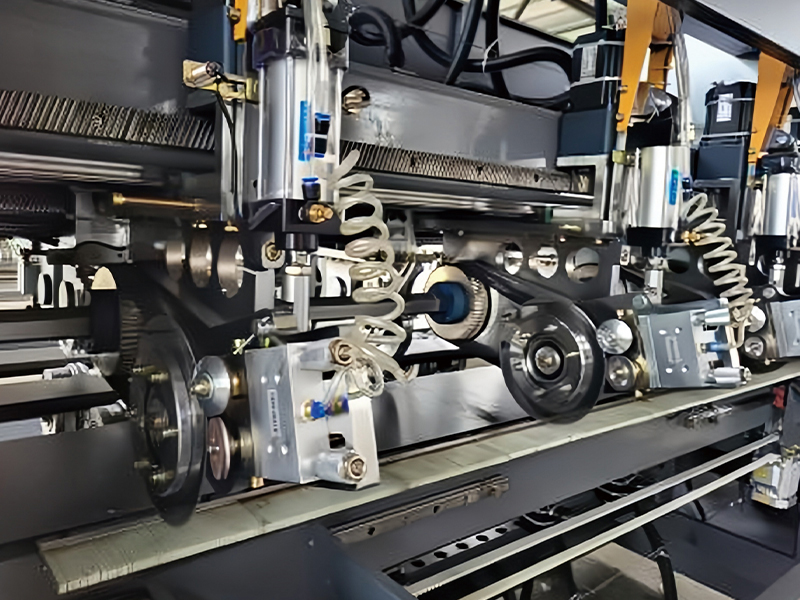

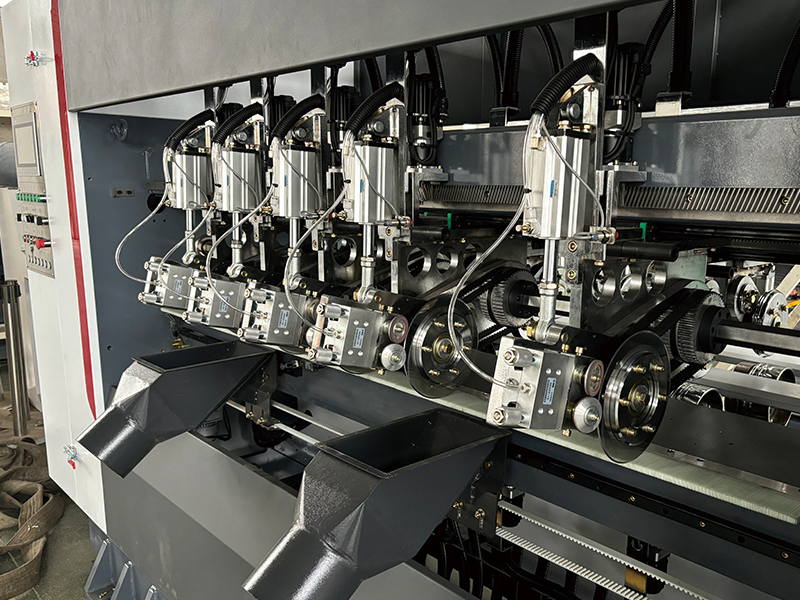

- Electric adjustment of slitting blade distance, automatic tool locking, double guiding shafts, double locking oil cylinder, stable operation and easy adjustment;
- Tungsten alloy blade is featured by great sharpness, long service life, clean slitting edge, intact and free of burrs;
- Five-point scoring enables scored line to be easily folded without breaking;
- Electric control of transverse movement, with moving range of 200mm;
- Two pneumatic sharpening methods of automatic and manual sharpening are adopted. Sharpening while working is supported to improve work efficiency;
- Polyurethane rubber is installed in the inner knife holder to prevent dust and reduce failure rate;
- Paper feeding from two rollers and then scoring, easily adjusted, only slitting under the circumstance of not scoring, thus avoiding to make errors;

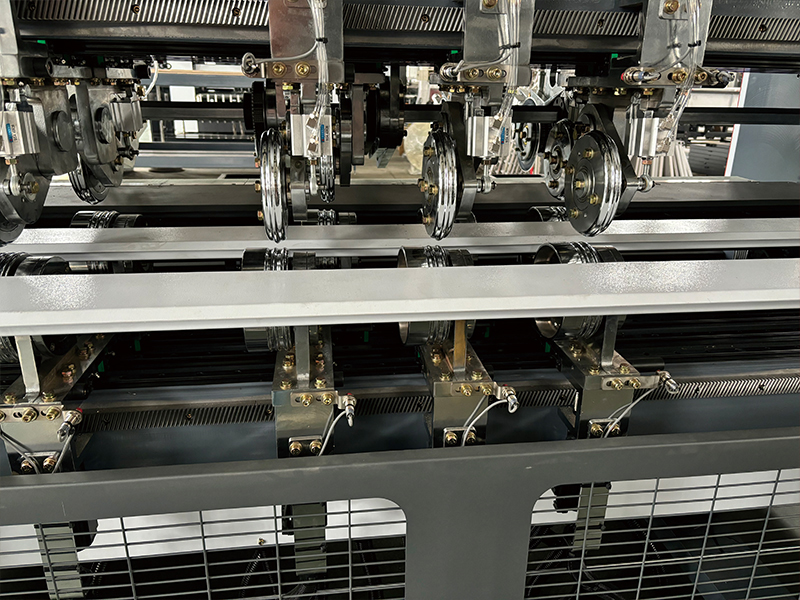

- The lower scoring wheel is the driving wheel powered by six rows of shaft while the paper is smooth. The upper and lower scoring wheel can be slightly adjusted in a timing manner;
- HRB bearing ensures the long time running of the machine.
Specifications
| Model | | | |
| Effective width | 1650mm(64.96") | 1850mm(72.83") | 2250(88.58") |
| Min. slitting | 120mm(4.72") | ||
| Min. scoring distance | 30mm(1.18") | ||
| Slitting blade size | 200*122*1.3mm(7.87*4.8*0.05") | ||
| Scoring wheel size | Upper 152mm, lower 152mm(5.98") | ||
| Guiding range | ±100mm(3.94") | ||
| Slitting/scoring | 4/6 | 5/8 | 6/10 |
| Power | 4kW | 5.5kW | 7.5kW |
| Scoring depth | 0-12mm(0-0.47") | ||
| Speed (m/min) | 80m(3149.61")/min | ||
