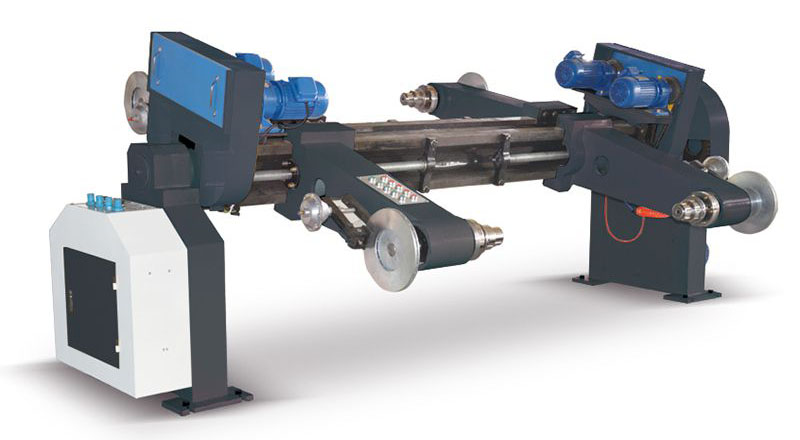

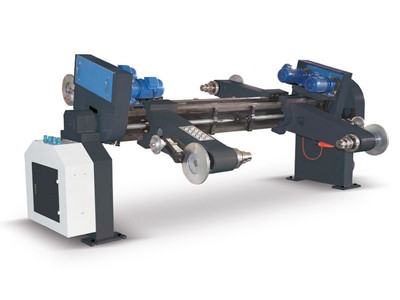

Electric Shaftless Mill Roll Stand
Corrugated Board Manufacturing
-
- Paper roll diameter
- φ350mm(13.78")-φ1400mm(55.12")
-
- Max. loading capacity at one side
- 2000kg
-
- Working air pressure
- 0.6-0.9Mpa
-
- Brake
- dual-point, multi-point
-
- Working width
- 1400mm(55.12")-1800mm(70.87")
-
- Loading capacity
- 2T
Features
- All movements including lifting and lowering, clamping and releasing are electrically operated;
- The design of symmetric structure allows for loading two paper rolls simultaneously, so that roll changing can be accomplished without stopping the machine;
- Pneumatic tension control is used to adjust the tension of paper;
- Roll stand chucks are expandable chucks for optimal efficiency;
