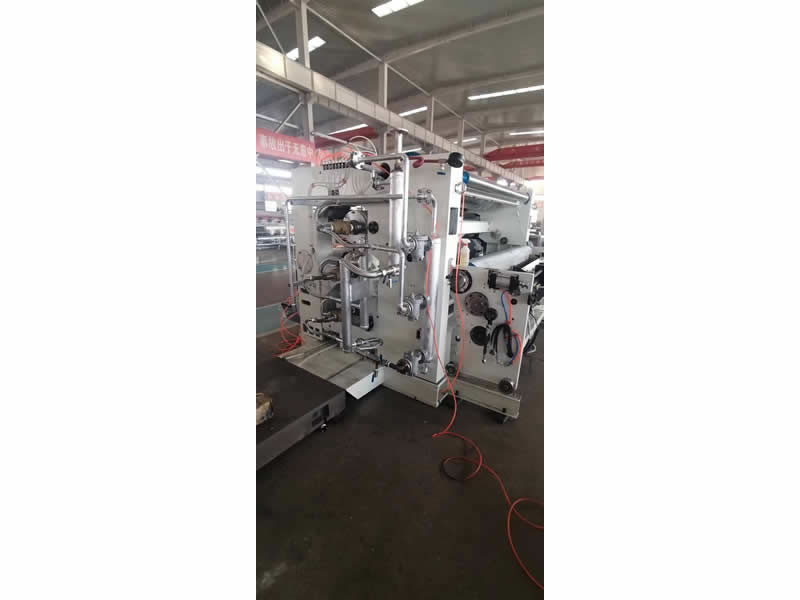

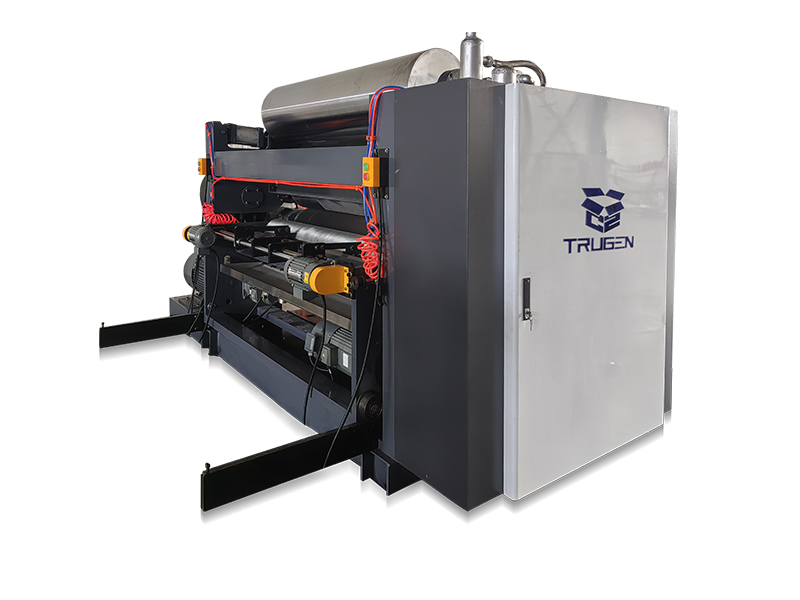

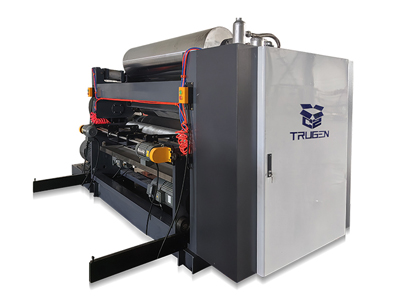

Single Facer with Cassette, SF-MW15

Corrugated Board Manufacturing

Design speed	150m/min
Working speed	120m/min
Temperature range	160-200°C
Steam pressure	0.8-1.3Mpa
Air pressure	0.4-0.9MPa
Flute type	(UV or UVV)
Corrugator Roll Dia.	Ø320mm

Inquiry

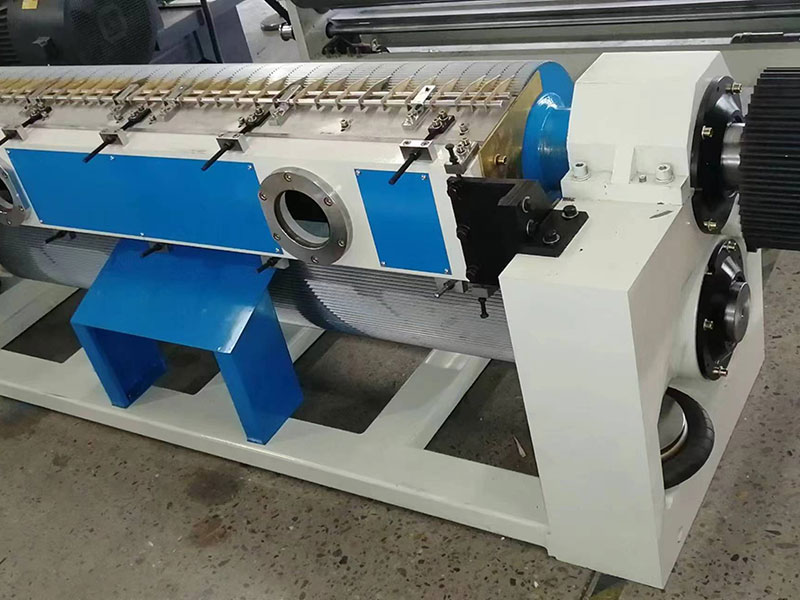

• Cassette type single facer provides quick flute change;
• Paper feeding is carried out by using vacuum absorption method, a high-pressure blower is equipped to ensure the stable corrugation process at high speed;
• The width of groove on lower corrugating roll is less than 2mm, efficiently preventing the marks of stripes on corrugated cardboard;
• Universal joint transmission system is adopted to reduce vibration, enabling the operation more stable and reliable;
• Reduction gearbox is designed with oil-immersed lubrication to lower the machine vibration;
• Automatic glue feeding, pneumatic control of glue application and return can provide cushion effect;
• Engraved glue applicator roll is chrome plated;

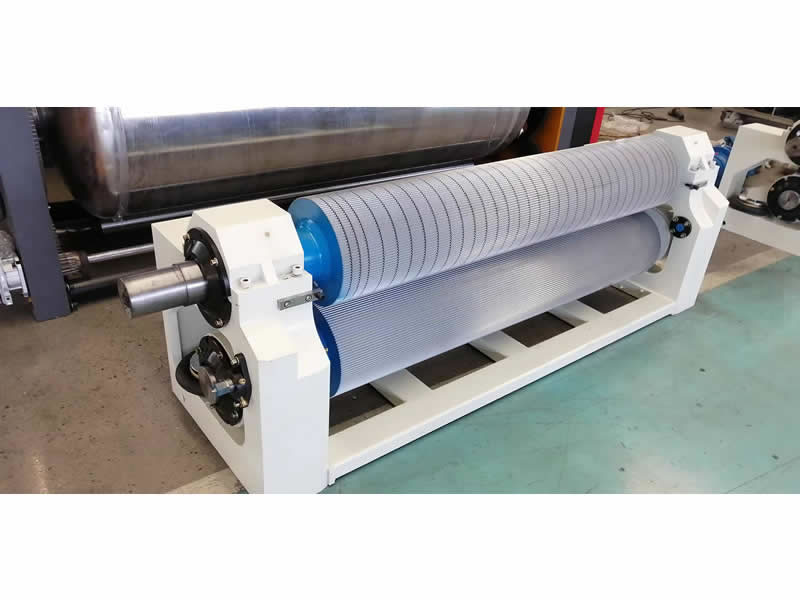

• Upper and lower corrugating rolls are made of 48CrMo high grade alloy steel;
• Tungsten carbide or alloy steel can be used as the material of corrugator roll;
