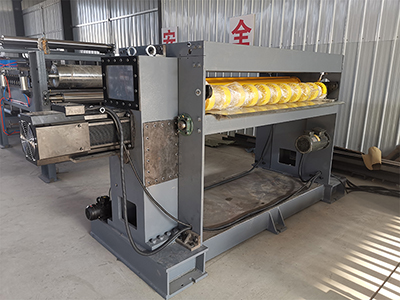

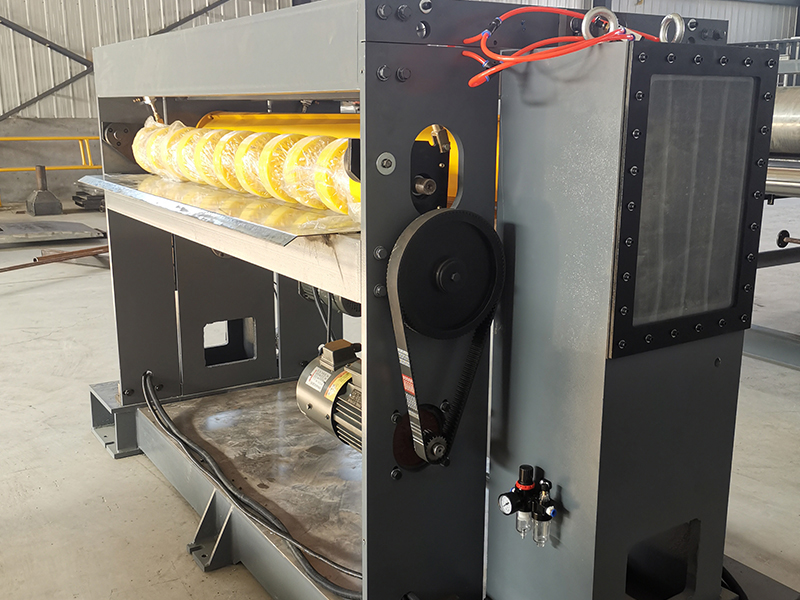

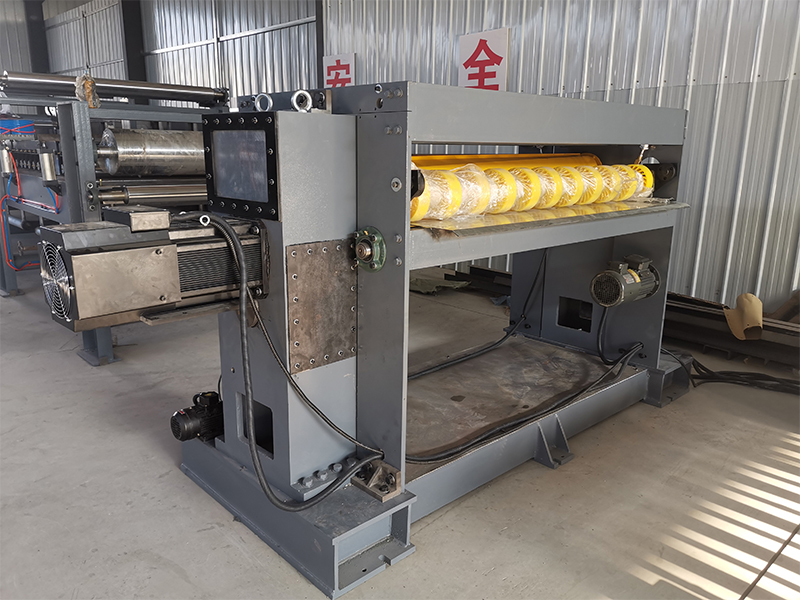

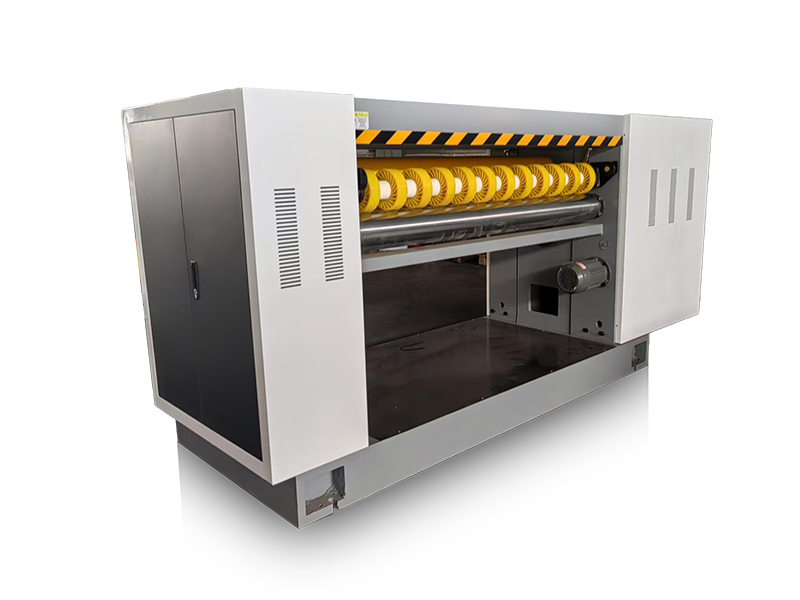

Helix-Knife Cut Off

Corrugated Sheet Cutting Machine

• Max. machine speed
  100m(3937.01")/min-200m/min(7874.02")
• Cutting length
  500-9999mm (19.69-393.66")
• Cutting precision
  ±1mm(0.04") (constant speed)
• Sheet specifications
  Linerboard ≤ 360g/m², Fluting paper ≤ 200g/m²
  Thickness 3-14mm(0.12-0.55"), Moisture content ≤10%
  Min. width ≤30mm(1.18"), Warpage 1000mm (39.37")
• Air pressure
  0.6-0.9MPa
• Working width
  1400mm(55.12")-2500mm(98.43")

Inquiry

• Robust machine sidewalls and base;
• Designed with two clear windows on both sides of the machine for easy supervision and maintenance;
• High precision cutter shaft and holder offer stable cutting process at high speed;
• Transmission system adopts oil pump for automatic circulating lubrication, ensuring high transmission precision;
• High precision gapless gear enables cardboard to be cut with burrless cutting edge;
• Quick changing of cutoff knives;
• Servo motor is from German brand, featuring quick response and high accuracy;
• Cutting speed can be automatically adjusted according to cardboard specifications and productivity by using computer system;
• Automatic synchronization with cardboard feeding speed;
• 200 set of orders can be stored, fast and accurate change of the paper specifications, order change with no necessity of stopping machines, connected with the Internet and easy to manage the production;
• Precisely forged steel is used to made knife shaft, highly frequent quenching, seamless transmission, advanced keyless connection method, high precision transmission;
• The helix-knife is designed with high-speed steel spiral knife structure, serrated type, scissor type cutting with strong force, long service life of blade;
• The front and back feeding wheels are both equipped with sun gear. Stable delivery, even pressure, hard to damage the paper board or cause jam;
• Precise adjustable seamless gear, ensuring the accurate meshing of blades and balanced running;
