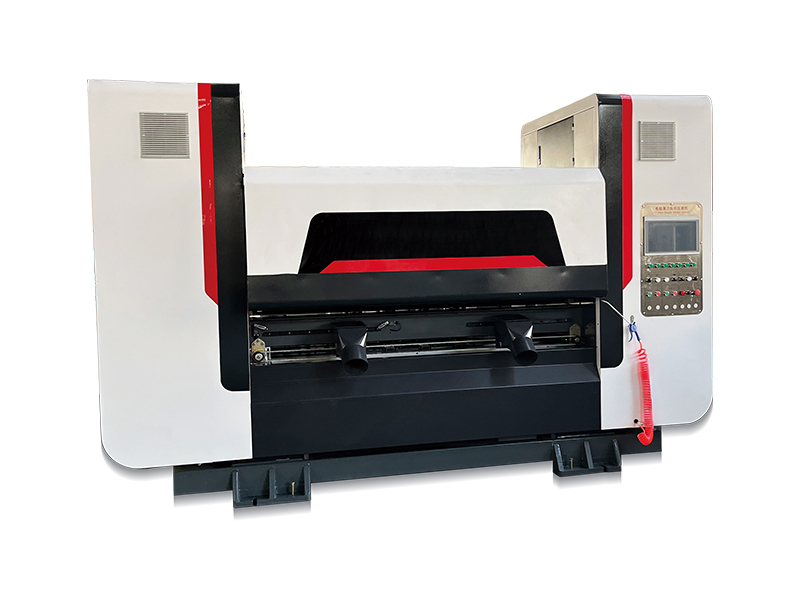

Slitter Scorer (ENC type)

Inquiry

Features

• The CNC system is composed of a high-quality touch screen and PLC, and can be seamlessly connected to the production line.
• Precision linear guide rails ensure accurate slitting and scoring positioning.
• The system can store multiple orders and supports automatic or manual order change without stopping the machine.
• Production speed is synchronized with the board speed, and the machine offers a standard communication interface for easy integration with production management systems.

• Equipped with alloy tungsten-steel thin blades that are extremely sharp and offer a service life of more than 8 million meters, with automatic blade sharpening.
• Blade sharpening is controlled by the computer and can be performed automatically or manually. The passive sharpening unit has a compact structure and is easy to maintain.
• Provides two scoring options: convex-to-concave and convex-to-flat.
• Dual rows of scoring wheels enable a minimum scoring distance of 0 mm.
• Scoring depth is computer-controlled, producing high-quality, stable and easy-to-form crease lines.
• The synchronous belt drive ensures high precision, low noise, and long service life.
• The machine is equipped with a motorized left-right rectification system with a correction range of 200 mm.
