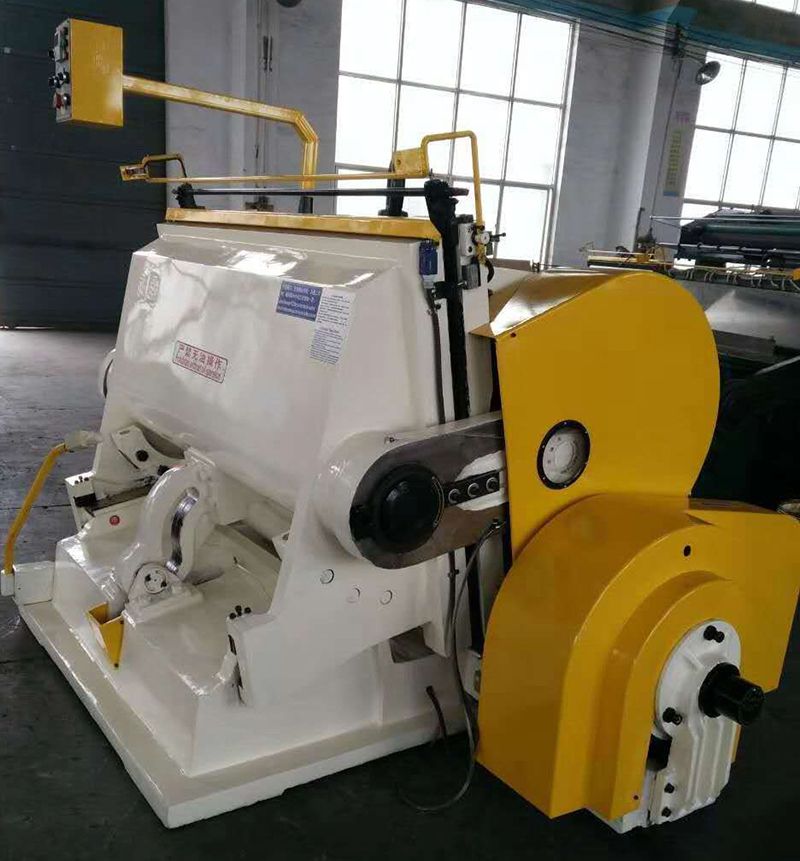

Clamshell Die Cutter
Designed To Die Cutting and Creasing Cardboard and Paper
- High grade bearing with excellent resistance to wear, delivering maintenance-free operation;
- Machine body is constructed with high quality metals through integral casting process, providing high strength and durability;
- Single plate electromagnetic clutch ensures reliable operation;
- Corrugated paper and paperboard can be separately slit and pieces of paper can be simultaneously slit.
Specifications
| Model | Max. working area | Working speed | Knife length | Motor power | Weight | Dimension (L×W×H) |
| | 750x520mm (29.53*20.47") | 28±2 (strokes/min) | < 15m (590.55") | 2.2kW | 2000kg | 1260x1350x1280mm (49.61*53.15*50.39") |
| 930x670mm (36.61*26.38") | 23±2 (strokes/min) | < 25m (984.25") | 4.0kW | 3000kg | 1800x1600x1 600mm (70.87*62.99*62.99") | |
| 1100x800mm (43.31*31.50") | 20±2 (strokes/min) | < 32m (1259.84") | 5.5kW | 4000kg | 1900x1800x1 700mm (74.80*70.87*66.93") | |
| 1200x830mm (47.24*32.68") | 20±2 (strokes/min) | < 35m (1377.95") | 5.5kW | 4300kg | 1900x2000x1 700mm (74.80*78.74*66.93") | |
| 1300x920mm (51.18*36.22") | 18±2 (strokes/min) | < 40m (1574.80") | 5.5kW/7.5kW | 5300kg | 2000x2400x1800mm (78.74*94.49*70.87") | |
| 1400x1000mm (55.12*39.37") | 18±2 (strokes/min) | < 45m (1771.65") | 5.5kW/7.5kW | 6000kg | 2000x2450x1900mm (78.74*96.46*74.80") | |
| 1500x1050mm (59.06*41.34") | 18±2 (strokes/min) | < 45m (1771.65") | 5.5kW/7.5kW | 6500kg | 2000x2500x1980mm (78.74*98.43*77.95") | |
| 1500x1150mm (59.06*45.28") | 18±2 (strokes/min) | < 45m (1771.65") | 5.5kW/7.5kW | 6800kg | 2000x2500x1930mm (78.74*98.43*75.98") | |
| 1600x1250mm (62.99*49.21") | 16±2 (strokes/min) | < 50m (1968.50") | 11kW | 11000kg | 2170x2560x2130mm (85.43*100.79*83.86") | |
| 1800x1300mm (70.87*51.18") | 16±2 (strokes/min) | < 62m (2440.94") | 15kW | 13500kg | 2240x2800x2230mm (88.19*110.24*87.80") | |
| 2000x1400mm (78.74*55.12") | 16±2 (strokes/min) | < 80m (3149.61") | 15kW | 14500kg | 2280x2900x2230mm (89.76*114.17*87.80") | |
| 2200x1450mm (86.61*57.09") | 16±2 (strokes/min) | < 90m (3543.31") | 18kW | 16500kg | 2280x3000x2250mm (89.76*118.11*88.58") | |
| 2500x1600mm (98.43*62.99") | 13±2 (strokes/min) | < 95m (3740.16") | 22kW | 20000kg | 3580x2400x2550mm (140.94*94.49*100.39") |
