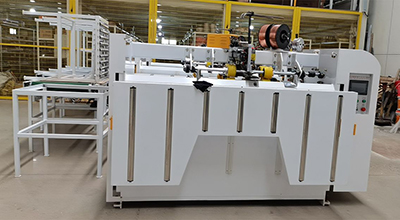

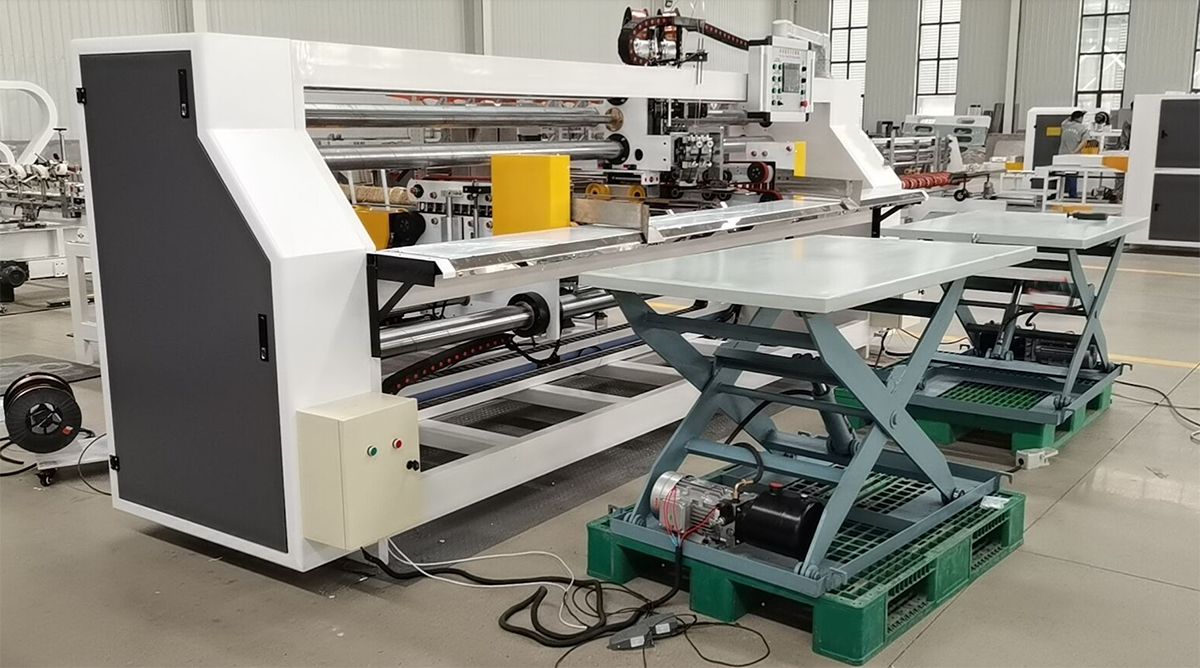

Semi-automatic Stitching Machine, 600 Stitches/min, Double-Station, SDJ-B
Features
- Four servo drive from SIEMENS, with high precision and less transmission parts, failure rate is significantly reduced;
- Omron PLC control system;
- Stitching heads are constructed with robust steel, and precisely processed via CNC machining;
- Able to produce carton box with or without lid;
- Automatic counting function is available at feeding section, finished cartons are transported in batches (can be set in a range of 2-99pcs) to the end part of the conveyor for strapping and packaging;
- Machine speed: 600 stitches/min;
- Suitable for stitching one-piece box, two-piece box and irregular shaped box;
- Single stitch (/), double stitch (//) or strengthen stitch (////) can be done in one pass, satisfying specific needs of users;
- Stitch pitch is adjustable in a range of 30-120mm;
- Automatic wire feeding system (20kg flat wire);
- Utilizing computer for automatic adjustment of parameters, ensuring high accuracy;
- Failure can be shown on computer monitor;
- Choosing Taiwan WEINVIEW touch screen，parameters（nail distance，number of nails，nail type，back panel）, convenient and fast change;
- Back electrical baffle is driven by stepper motor, accurate dimensions, convenient and fast change of dimension;
- After the electric baffle, using the stepper motor driver, the size is accurate, the transform size is more convenient and quick.
- Stitching heads are adopted with Taiwan original accessories, longer service life;
- One machine with dual purpose, nailing one-piece carton or two-pieces combined carton;
- Operators can switch orders and 99 orders can be stored in the system;
- Transformer is insulated to protect the machine and extend service life of the machine’s core components.
Specifications
| Model | | | |
| Max. sheet size (A+B)*2(mm) | 6000(236.22") | 7000(275.59") | 8000(314.96") |
| Min. sheet size (A+B)*2(mm) | 1220(48.03") | 1220(48.03") | 1220(48.03") |
| Max. carton length A (mm) | 2820(111.02") | 3320(130.71") | 3820 (150.39") |
| Min. carton length A (mm) | 430(16.93") | 430(16.93") | 430(16.93") |
| Max. carton width B (mm) | 1500(59.06") | 1750(68.90") | 2000(78.74") |
| Min. carton width B (mm) | 180(7.09") | 180(7.09") | 180(7.09") |
| Max. sheet height (C+D+C)(mm) | 3200(125.98") | 3200(125.98") | 3200(125.98") |
| Min. sheet height (C+D+C)(mm) | 400(15.75") | 400(15.75") | 400(15.75") |
| Max. flap size C (mm) | 600(23.62") | 600(23.62") | 600(23.62") |
| Min. flap size C (mm) | 80(3.15")(standard) 20(0.79")(optional) | 80(3.15")( standard) 20(0.79")(optional) | 80(3.15")( standard) 20(0.79")(optional) |
| Max. carton height D (mm) | 2000(78.74") | 2000(78.74") | 2000(78.74") |
| Min. carton height D (mm) | 200(7.87") | 200(7.87") | 200(7.87") |
| Max. glue flap width | 40(1.57") | 40(1.57") | 40(1.57") |
| Stitch pitch (mm) | 30-120(1.18-4.72") | 30-120(1.18-4.72") | 30-120(1.18-4.72") |
| Number of stitches | 2-99 | 2-99 | 2-99 |
| Machine speed (stitches/min) | 600 | 600 | 600 |
| Machine weight (T) | 4 | 4 | 4.5 |
