  • Automatic Flatbed Die-cutting Machine

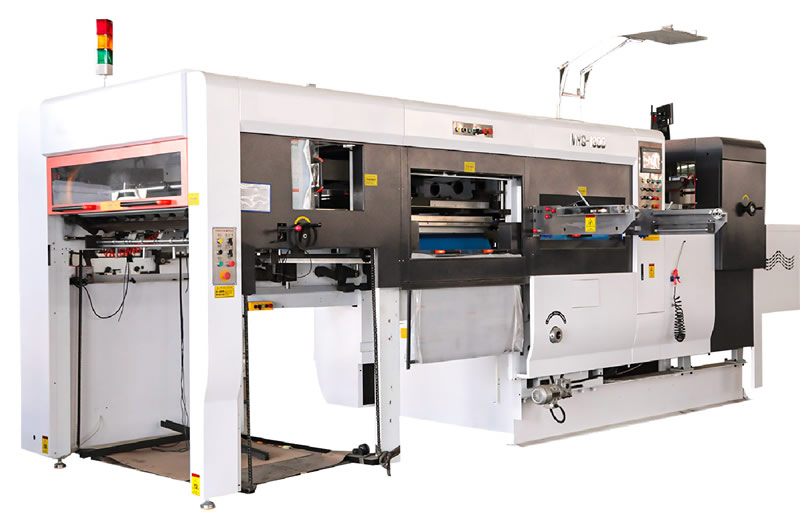

Automatic Flatbed Die-cutting Machine

Video
Automatic Flatbed Die-cutting Machine

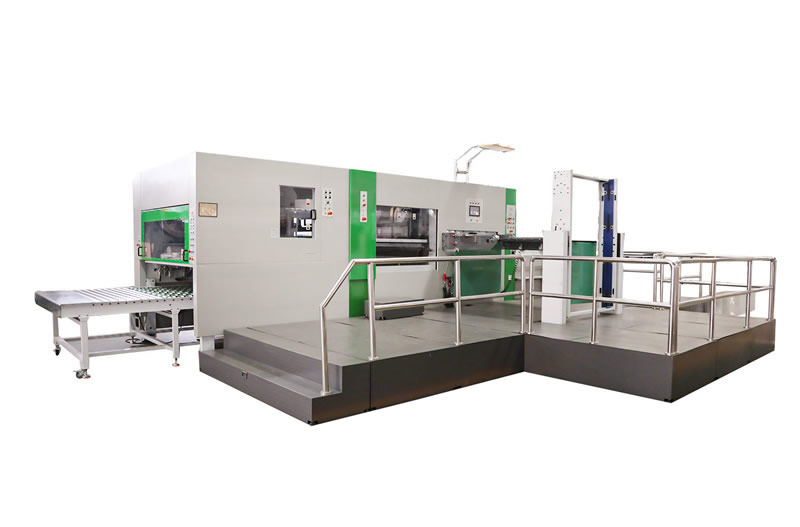

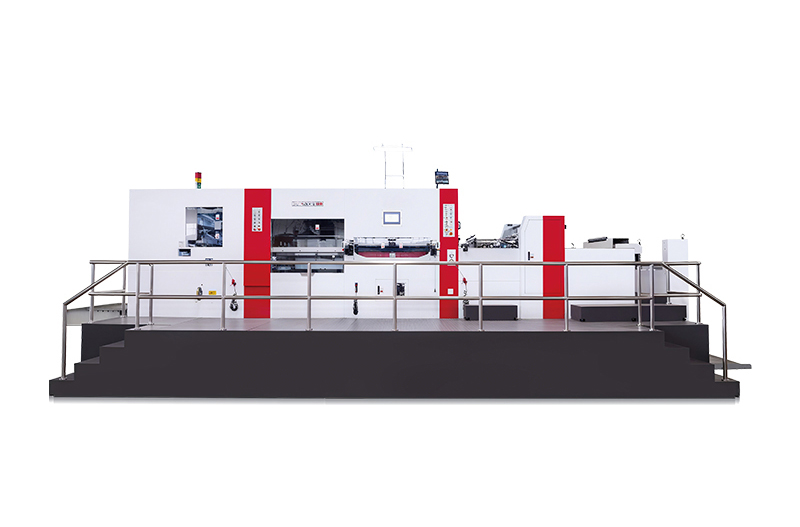

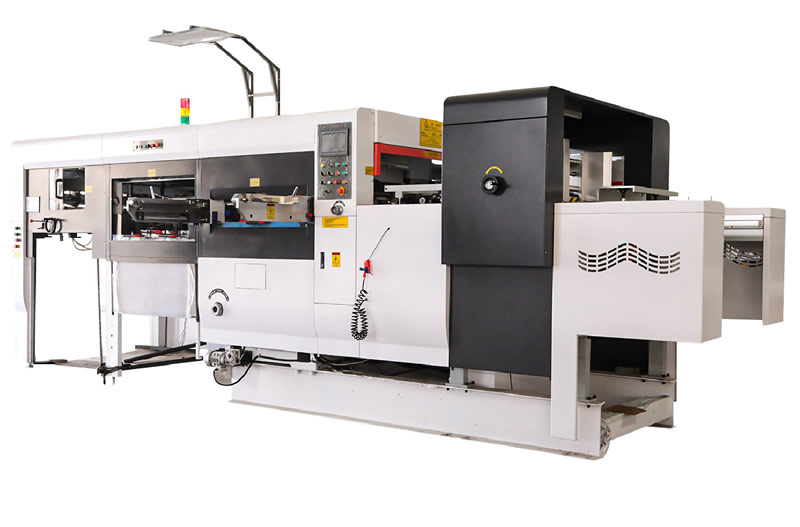

Automatic Flatbed Die-cutting Machine Automatic Flatbed Die-cutting Machine Automatic Flatbed Die-cutting Machine Automatic Flatbed Die-cutting Machine
Inquiry

Automatic flatbed die-cutting machine is particularly used for cutting cardboards, and designed with waste stripping function. During the die-cutting process, the waste stripping system removes edge trims and wastes of sheets, significantly improving the production efficiency. The flatbed die-cutting machine can achieve continuous production with non-stop loading and unloading.

Features

  • PLC control with touch screen, the machine will automatically stop when any failure occurs, and the touch screen displays the failure;
  • Servo driven lead edge feeder can adjust the length of feeding cardboard, minimizing the affection on the strength of corrugated cardboard;
  • High pressure blower for smooth sheet conveying, air flow is adjustable;
  • Stripping section adopts centerline system for quick change of die;
  • Sheet feeding system coupled with automatic counting and hydraulic lifting platform ensures continuous sheet loading and feeding;
  • Unique clamping designed with specially processed gear structure to minimize the clamping distance and save paper;
  • 300-1-200 blank-to-blank interval, suitable for processing paperboard in large dimension, longer paper feeding time, less dependent on operators;
  • Lead edge paper feeding and paper feeding components are both controlled by servo system, ensuring the right feeding place of each paper;
  • All casts are made of ductile cast iron with superior mechanical performance and premium resin sand, ensuring machine’s service life.

Specifications

Model MY-1650 MY-1500 MY-1300
Max. sheet size 1670*1200mm
(65.75*47.24")
1510*1120
(59.45*44.09")
1320*980
(51.97*38.58")
Min. sheet size 500*550mm
(19.69*21.65")
450*500
(17.72*19.69")
350*450
(13.78*17.72")
Max. cutting size 1650*1180mm
(64.96*46.46")
1490*1100
(58.66*43.31")
1300*960
(51.18*37.80")
Max. cutting pressure 450n/cm² 450n/cm² 450n/cm²
Applicable paperboard Corrugated cardboard
3-10mm(0.12-0.39")
Corrugated cardboard
3-10mm(0.12-0.39")
Corrugated cardboard
3-10mm(0.12-0.39")
Max. machine speed 4500 sheets/h 5000sheets/h 5000sheets/h
Total power ~32 kW ~28.5km ~28.5km
Total power (with stripping) 35kW 28.5kW 28.5kW
Machine weight 23Ton 19.5Ton 16.5 T
Machine weight
(with stripping)
27T 21.5T 18.5T
Dimension 7000*2980*2450mm
(275.59*117.32*96.46")
6200*2380*2356mm
(244.09*93.7*92.76")
5900*2365*2346mm
(232.28*93.11*92.36")
Total dimension 8500*2365*2346mm
(334.65*93.11*92.36")
7400*2365*2346mm
(291.34*93.11*92.36")
7080x2356x2346mm
(278.74*92.76*92.36")
Contact Us
Licaishen Village,Dongguang County,Cangzhou City,Hebei Province, China
Jack Han
jack@sinorightpack.com
+86-18222543168

Get in Touch

  • Corrugated Converting Equipment
      Flexo Rotary Die Cutter Automatic Printing Folder Gluer Die Cutting Machine Sheet to Sheet Laminator Stitcher and Gluer Automatic High-speed Hot Melt Laminating Packing Machine
  • Corrugating Machine
      Single Facer Preheater Mill Roll Stand Auto Splicer Glue Machine Corrugator Bridge Double Facer Slitter Scorer Helix-Knife Cut Off Stacker Cutting and Stacking System
  • Corrugator Lines
      Single Face Board, up to 100m/min Single Face Board, up to 200m/min Single Wall Cardboard Double Wall Cardboard Triple Wall Cardboard
Other Products You May Like
Clamshell Die Cutter

Clamshell Die Cutter

Sheet to Sheet Laminator, BZJ-L Series

Sheet to Sheet Laminator, BZJ-L Series

Slitter Scorer Machine, Electrical Control, 80m /min, SMBD-DDJY

Slitter Scorer Machine, Electrical Control, 80m /min, SMBD-DDJY

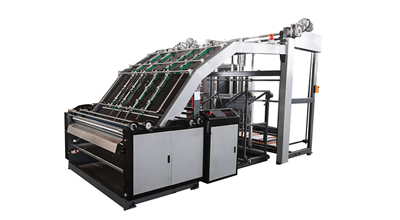

Flute Laminating Machine, Semi-automatic, BZJ-Q-3
