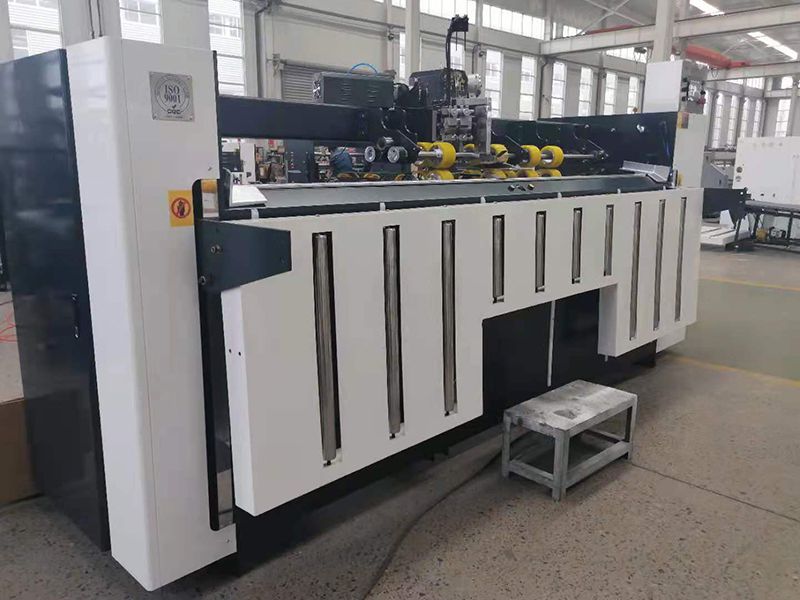

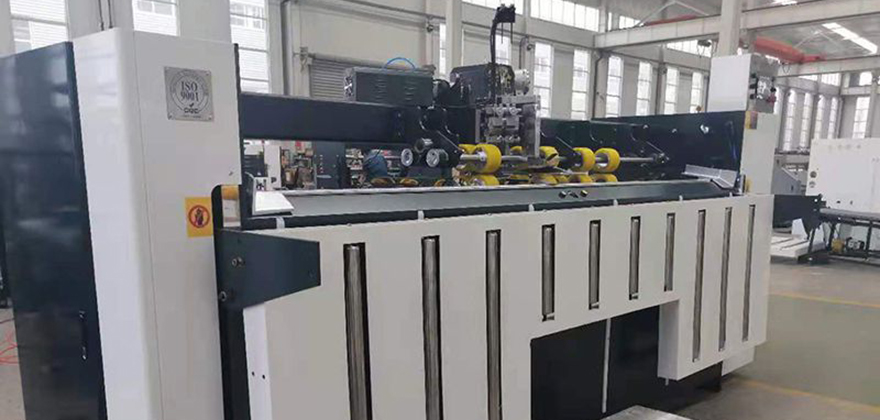

Semi-automatic Stitching Machine, 600 Stitches/min, BDJ-B
This product has been discontinued and removed from our shelves.
Features
- Double servo drive from MITSUBISHI, with high precision and less transmission parts, failure rate is significantly reduced;
- Weintek touch screen makes parameters (stitch pitch, stitch quantity, stitch type, back gauge) to be easily adjusted;
- Omron PLC control system;
- Single stitch (/), double stitch (//) or strengthen stitch (////) can be done in one pass, satisfying specific needs of users;
- Paper feeding section is equipped with automatic counting unit and photoelectric sensor, feeding table will automatically lift during feeding process;
- Automatic counting function is also available at tail section, finished cartons are transported in batches (can be set in a range of 2-99pcs) to the end part of the conveyor for strapping and packaging;
- Machine speed: 600 stitches/min;
- Stitch pitch: 30-130mm;
- Lifting height of working table: 900mm;
- Automatic wire feeding system (20kg flat wire);
Specifications
| Model | | |
| Max. sheet size (length+width)×2 (mm) | 3740 (147.24") | 4740(186.61") |
| Min. sheet size (length+width)×2 (mm) | 700(27.56") | 560(22.05") |
| Min. flap size (mm) | 20(0.79") | 75 (2.95") |
| Max. flap size (mm) | 310 500 (optional) (12.20 19.69") | 500(19.69") |
| Max. carton width (mm) | 770(30.31") | 920(36.22") |
| Min. carton width | 150(5.91") | 150(5.91") |
| Max. carton length (mm) | 1100(43.31") | 1450(57.09") |
| Min. carton length (mm) | 200(7.87") | 200(7.87") |
| Max. carton height | 2000(78.74") | 2000(78.74") |
| Min. carton height | 150(5.91") | 150(5.91") |
| Max. glue flap width | 40(1.57") | 40(1.57") |
| Max. feeding table height (mm) | 900(35.43") | 900(35.43") |
| Machine dimension (mm) | 2850x1700x1800 (112.20*66.93*70.87") | 3300x1700x1800 (129.92*66.93*70.87") |
| Machine weight (T) | 2 | 2.3 |
| Machine speed (stitches/min) | 600 | 600 |
| Number of stitches | 2-99 | 2-99 |
