Sheet to Sheet Laminating Machine, BZJ-S

This product has been discontinued and removed from our shelves.

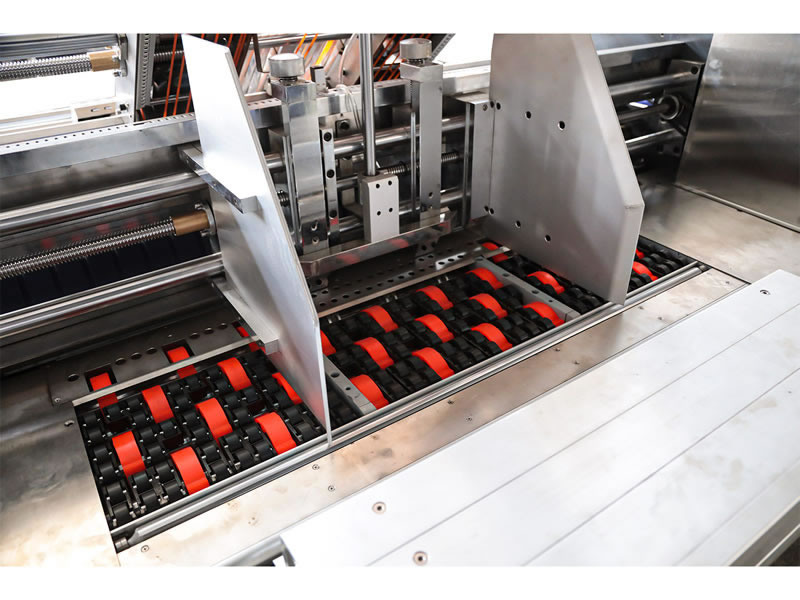

Sheet to Sheet Laminating Machine, BZJ-S
Sheet to Sheet Laminating Machine, BZJ-S Sheet to Sheet Laminating Machine, BZJ-S Sheet to Sheet Laminating Machine, BZJ-S Sheet to Sheet Laminating Machine, BZJ-S

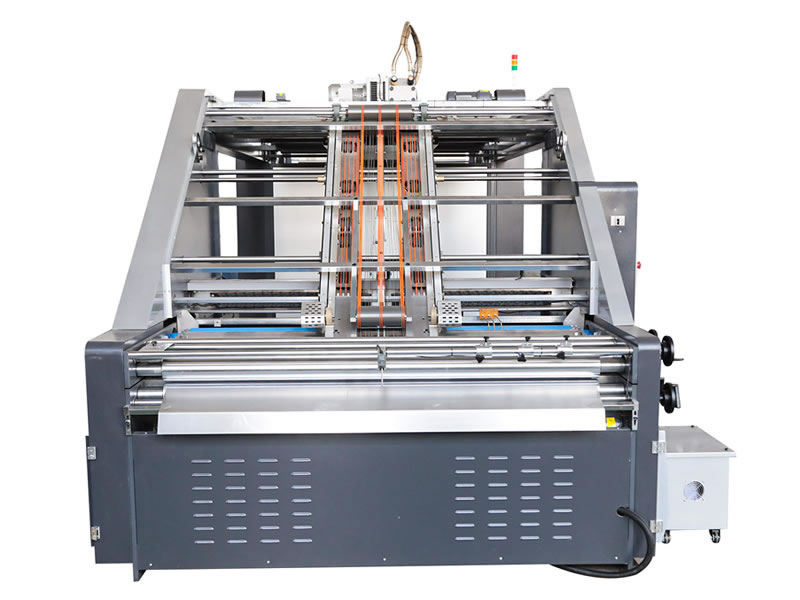

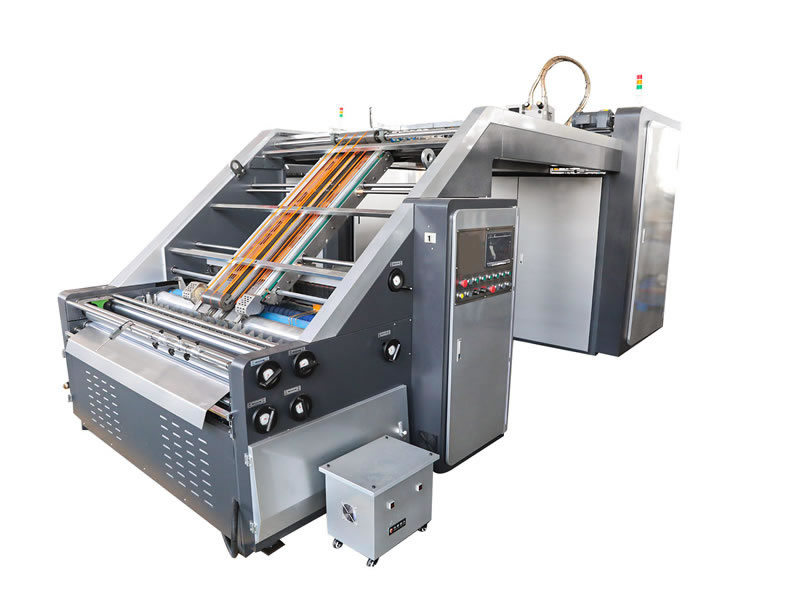

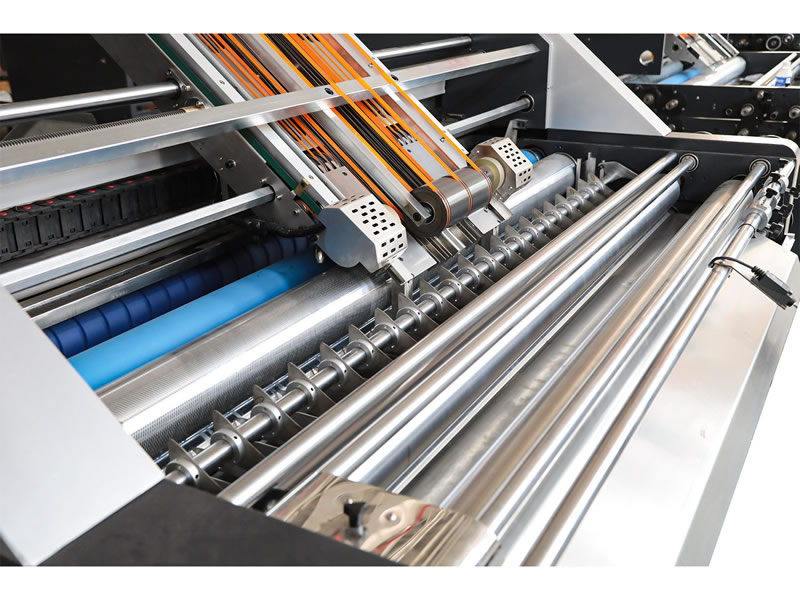

Sheet to sheet laminating machine is a fully automatic sheet laminator that particularly designed for laminating of paper, cardboard and corrugated board. It is featured by high speed, low noise, high precision, easy to operate and simple maintenance. Glue is automatically fed, and recycled after application, and glue quantity is adjustable according to the properties of various substrates, enabling the glue to be evenly applied on the surface of the substrate while saving the consumption of glue. This sheet to sheet laminating machine is suitable for high-speed production of A, B, C, D, E, F, N flute, 3-ply, 5-ply or 7-ply corrugated cardboards and solid boards with excellent board flatness.

Inquiry

Specifications

Model Unit BZJ-1300S BZJ-1450S BZJ-1600S
Max. sheet size (L×W) mm 1300*1100
(51.18*43.31")
1450*1100
(57.09*43.31")
1600*1100
(62.99*43.31")
Min. sheet size (L×W) mm 350*350
(13.78*13.78")
350*350
(13.78*13.78")
350*350
(13.78*13.78")
Laminating accuracy mm ≦±1.5(0.06") ≦±1.5(0.06") ≦±1.5(0.06")
Max. machine speed m/min 100(3937.01") 100(3937.01") 100(3937.01")
Total power kW 12 12 12
Dimension (L×W×H) m 12.5*2.15*2.6
(492.13*84.65*102.36")
12.5*2.30*2.6
(492.13*90.55*102.36")
12.5*2.45*2.6
(492.13*96.46*102.36")
Machine weight T 6.8 7.2 8.0
