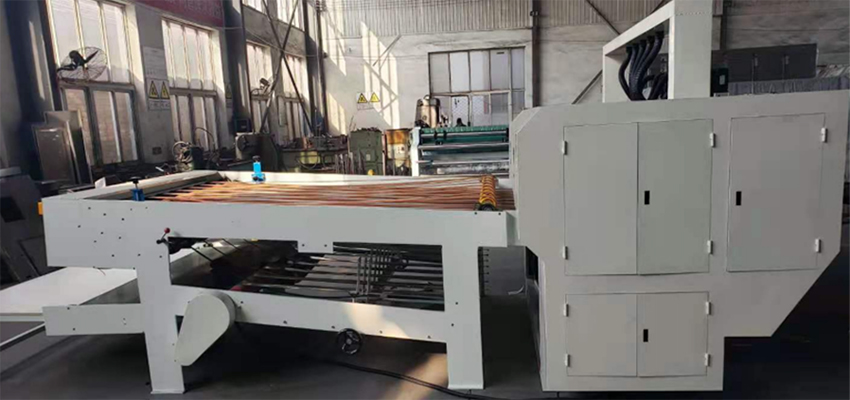

Corrugated Slitting and Cutting System, Servo Control

This product has been discontinued and removed from our shelves.

Corrugated Board Manufacturing

Inquiry

Specifications

• Design speed
  100 cuts/min
• Machine speed
  80-100 cuts/min
• Max. working width
  1800mm(70.87")
• Cutting length
  400mm-2999mm(15.75-118.07")
• Cutting precision
  ±3-5mm(0.12-0.20") (constant speed)
• Relative humidity
  20%-90%
• Relative temperature
  5℃-50℃
• Voltage
  380V
• Frequency
  50Hz
• Motor power
  14.5kW

• Slitting unit adopts Delta Electronics (Taiwan) A2 servo control system, providing stable performance and precise cut size;
• Each blade is equipped with an independent servo drive, greatly shortening order change cycle (2-3 seconds only) while reducing the waste of material and lowering manufacturing cost;
• Delta Electronics PLC, CANopen Bus control system, real-time data transmitting, lower failure rate;
• HMI interface with 10" color touch screen;
• Up to 999 orders can be stored, can meet customer's specific production demands;
• Cut-off unit is servo controlled;
• Stacking speed is controlled with variable frequency drive;
