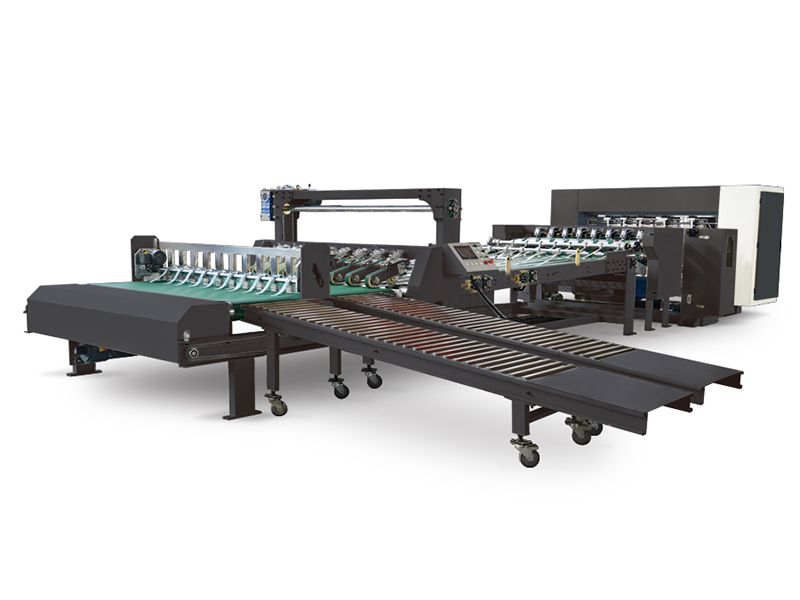

Slitting Cutting and Stacking System for Single Face Corrugated Board, NCM-15B

This product has been discontinued and removed from our shelves.

Corrugated Board Manufacturing

Inquiry

Specifications

• Machine speed
  150m (5905.51")/min
• Recommended speed
  100-140m (3937.01-5511.81")/min
• Stacked cardboard length
  400-2000mm (15.75-78.74")
• Cutting precision
  ±1mm (0.04")
• Min. slitting width
  150mm (5.91")
• Quantity of slitting blades
  6
• Order change cycle
  3-8 seconds
• Max. stacking height
  300mm (11.81")

• Up to 999 orders can be stored, non-stop automatic order change or manual order change;
• Automatic synchronization with production line speed;
• Able to connect with production management system, high compatibility;
• Adopting tungsten metal alloy blade that features high sharpness, with service life of more than 8 million meters;
• Computer-controlled automatic or manual blade sharpening, cutting and sharpening can be carried out simultaneously for improved production efficiency;
• Imported timing belt is used for stable transmission with less noise;
• Cut-off unit is servo controlled;
• Upper and lower cut-off knife shafts are equipped with precise gear transmission system and automatic circulating oil cooling system, enhancing cutting precision;
• Helical cut-off knife system, easy and quick knife adjustment;
• 15" LCD control panel, machine running and stopping are controlled by button;
• Stacking can be pre-set according to required height or desired quantities, which are switchable according to actual production needs;
• Automatic sheet counting and stacking with non-stop operation, PLC controlled;
• Gantry type electric lifting stacking system enables cardboards to be neatly and accurately stacked in batches;
• Two rows of delivery table of 400mm in width are available for manual take-off;
